NL17SH08 Single 2-Input AND Gate

ON Semiconductor

NL17SH08 Description

NL17SH08 Single 2-Input AND Gate The NL17SH08 is an advanced high speed CMOS 2 *input AND gate fabricated with silicon gate CMOS technology.Th.

NL17SH08 Features

* http://onsemi. com MARKING DIAGRAM SOT
* 953 CASE 527AE EM 1
* High Speed: tPD = 3.5 ns (Typ) at VCC = 5.0 V Low Power Dissipation: ICC = 1.0 mA (Max) at TA = 25°C Power Down Protection Provided on Inputs Balanced Propagation Delays P

NL17SH08 Applications

* and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended,

📥 Download Datasheet

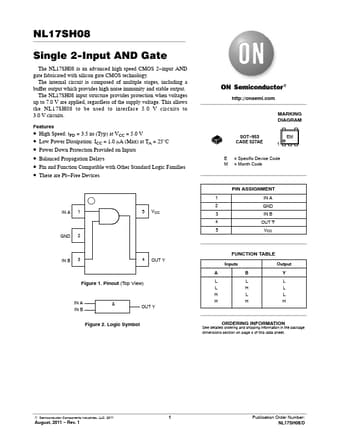

NL17SH08 Datasheet Preview — Preview of NL17SH08 PDF

Datasheet Details

Part number: NL17SH08
Manufacturer: ON Semiconductor ↗
File Size: 104.60 KB
Datasheet: NL17SH08-ONSemiconductor.pdf
Description: Single 2-Input AND Gate
