NCV7805 1.0A Positive Voltage Regulator

NCV7805 Description

Voltage Regulators * Positive 1.0 A MC7800, MC7800A, MC7800AE, NCV7800 These voltage regulators are monolithic integrated circuits designed as.

NCV7805 Features

* Output Current in Excess of 1.0 A
* No External Components Required
* Internal Thermal Overload Protection
* Internal Short Circuit Current Limiting
* Output Transistor Safe
* Area Compensation
* Output Voltage Offered in 1.5%, 2% and 4% Tolera

NCV7805 Applications

* including local, on
* card regulation. These regulators employ internal current limiting, thermal shutdown, and safe
* area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices

📥 Download Datasheet

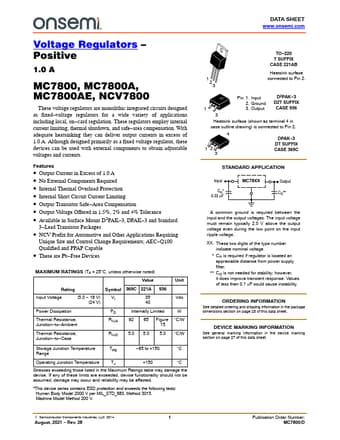

Preview of NCV7805 PDF
