NCV7705A, NCV7705 Mirror-Module Driver

ON Semiconductor

Description

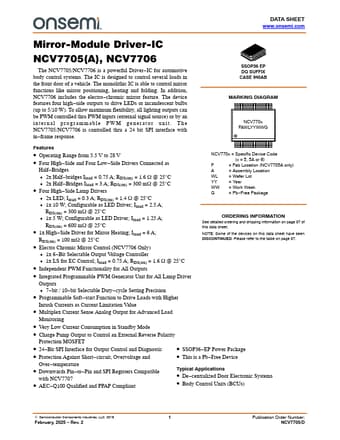

DATA SHEET www.onsemi.com Mirror-Module Driver-IC NCV7705(A), NCV7706 The NCV7705/NCV7706 is a powerful Driver *IC for automotive body contro.

📥 Download Datasheet

NCV7705A Datasheet Preview — This datasheet PDF includes multiple part numbers: NCV7705A, NCV7705. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: NCV7705A, NCV7705
Manufacturer: ON Semiconductor ↗
File Size: 372.66 KB
Datasheet: NCV7705-ONSemiconductor.pdf
Description: Mirror-Module Driver
Note: This datasheet PDF includes multiple part numbers: NCV7705A, NCV7705.
Please refer to the document for exact specifications by model.

Features

* four high
* side outputs to drive LEDs or incandescent bulbs (up to 5/10 W). To allow maximum flexibility, all lighting outputs can be PWM controlled thru PWM inputs (external signal source) or by an internal programmable PWM generator unit. The NCV7705/NCV7706 is controlled thru a 24 bit SPI

Applications

* De
* centralized Door Electronic Systems
* Body Control Units (BCUs) © Semiconductor Components Industries, LLC, 2016 1 February, 2025
* Rev. 2 Publication Order Number: NCV7705/D NCV7705(A), NCV7706 NCV7705/06 Undervoltage Lockout VCC SI SCLK CSB SO Overvoltag
