NCV5500 - 500mA LDO Voltage Regulator

ON Semiconductor

NCV5500 Datasheet Preview — Preview of NCV5500 PDF

Datasheet Details

Part number	NCV5500
Manufacturer	ON Semiconductor ↗
File Size	187.31 KB
Description	500mA LDO Voltage Regulator
Datasheet	NCV5500_ONSemiconductor.pdf

NCV5500 Product details

Description

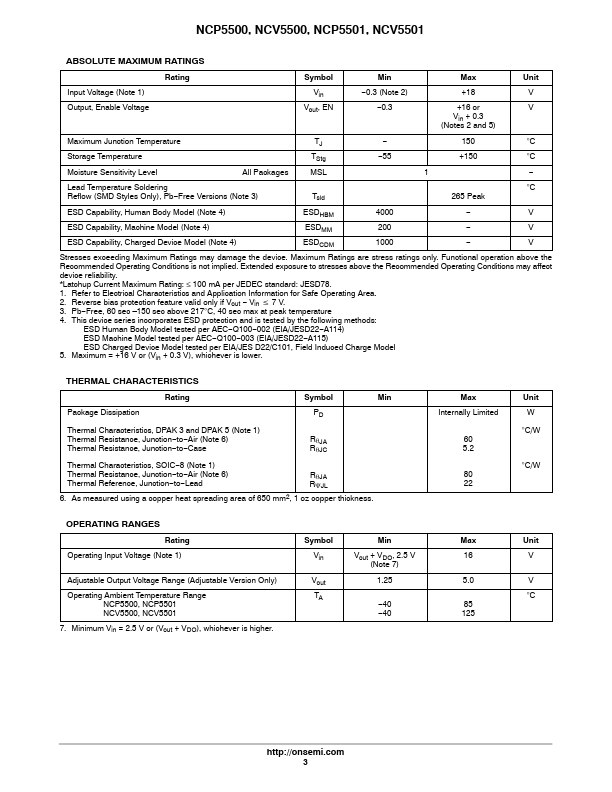

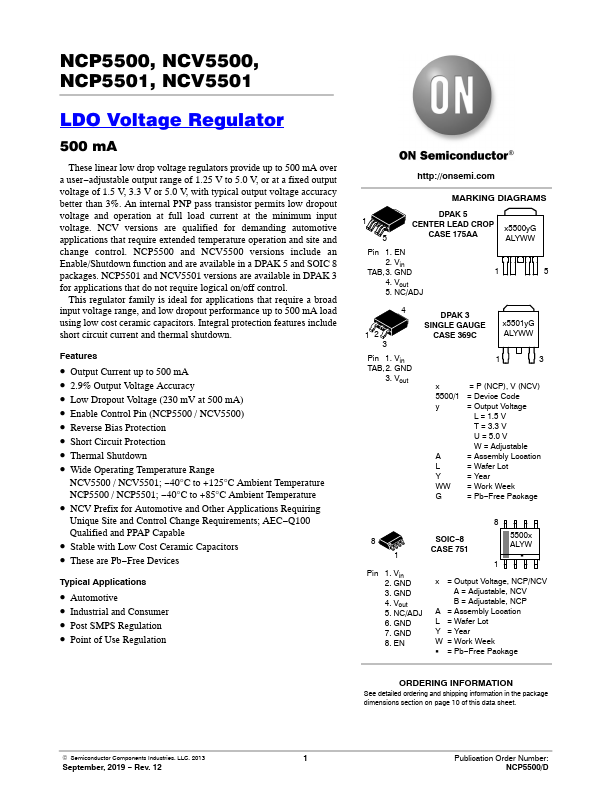

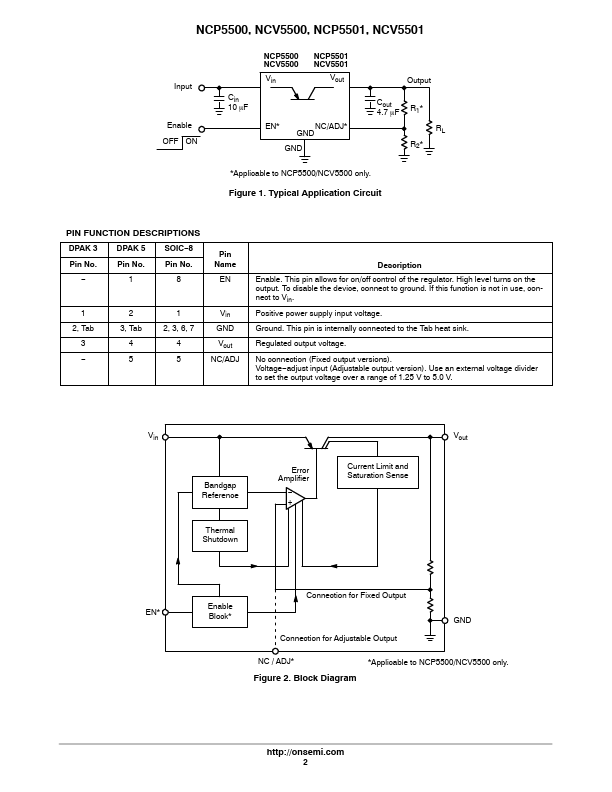

DPAK 3 DPAK 5 SOIC 8 Pin No.Pin No.Pin No. 1 8 Pin Name EN 1 2, Tab 3 2 3, Tab 4 5 1 2, 3, 6, 7 4 5 Vin GND Vout NC/ADJ Description Enable.This pin allows for on/off control of the regulator.High level turns on the output.To disable the device, connect to ground.If this function is not in use, connect to Vin.Positive power supply input voltage.Ground.This pin is internally connected to the Tab heat sink.Regulated output voltage.No connection (Fi

Features

include short circuit current and thermal shutdown. Features.
Output Current up to 500 mA.
2.9% Output Voltage Accuracy.
Low Dropout Voltage (230 mV at 500 mA).
Enable Control Pin (NCP5500 / NCV5500).
Reverse Bias Protection.
Short Circuit Protection.
Thermal Shutdown.
Wide Operating Temperature Range NCV5500 / NCV5501;.
40°C to +125°C Ambient Temperature NCP5500 / NCP5501;.
40°C to +85°C Ambient Temperature.
