NCV494 Switch mode Pulse Width Modulation Controller

NCV494 Description

Switch mode Pulse Width Modulation Control Circuit TL494, NCV494 The TL494 is a fixed frequency, pulse width modulation control circuit designed prima.

NCV494 Features

* Complete Pulse Width Modulation Control Circuitry
* On
* Chip Oscillator with Master or Slave Operation
* On
* Chip Error Amplifiers
* On
* Chip 5.0 V Reference
* Adjustable Deadtime Control
* Uncommitted Output Transistors Rated to

NCV494 Applications

* Requiring Site and Control Changes
* Pb
* Free Packages are Available
* MAXIMUM RATINGS (Full operating ambient temperature range applies, unless otherwise noted. ) Rating Symbol Value Unit Power Supply Voltage Collector Output Voltage Collector Output Current (Each transistor)

📥 Download Datasheet

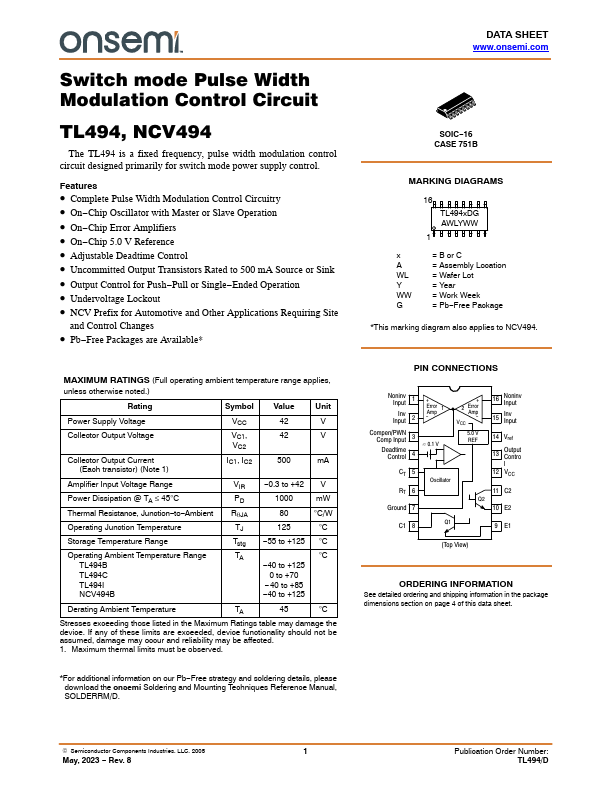

Preview of NCV494 PDF

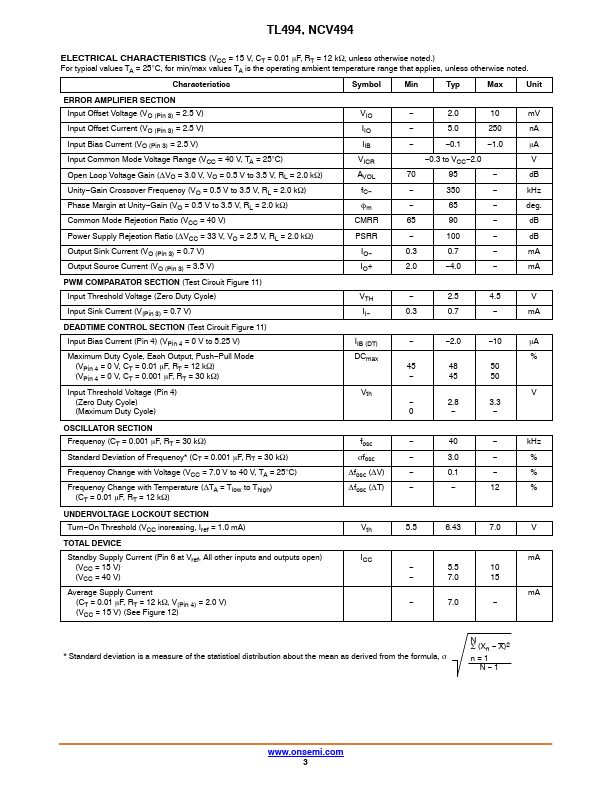

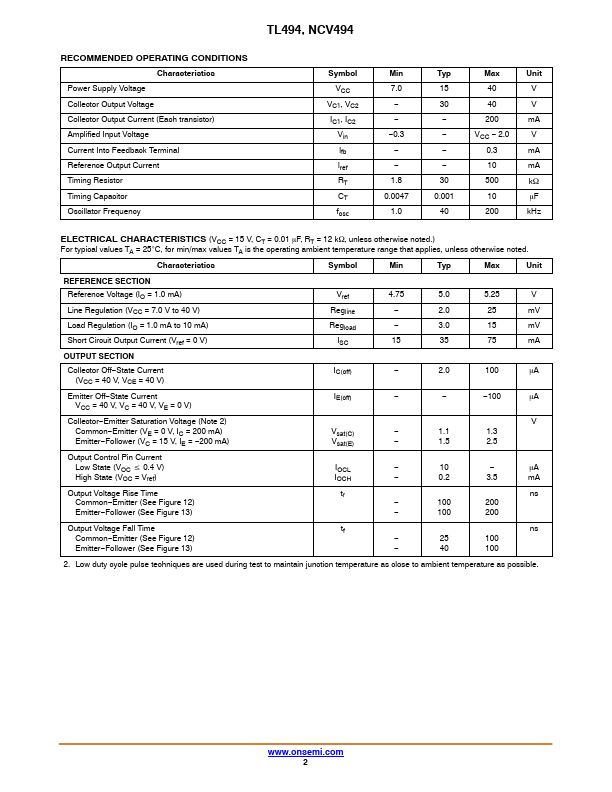

datasheet Preview Page 2 datasheet Preview Page 3
