NCV4279C - 5.0V Micropower 150mA LDO Linear Regulator

ON Semiconductor

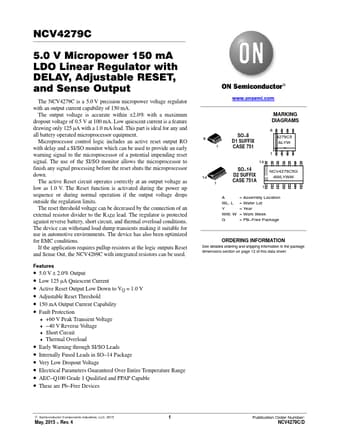

NCV4279C Datasheet Preview — Preview of NCV4279C PDF

Datasheet Details

Part number	NCV4279C
Manufacturer	ON Semiconductor ↗
File Size	116.62 KB
Description	5.0V Micropower 150mA LDO Linear Regulator
Datasheet	NCV4279C-ONSemiconductor.pdf

NCV4279C Product details

Description

Package Pin Number SO 8 3 4 SO 14 1 2 Pin Symbol RADJ D 5 3, 4, 5, 6, GND 10, 11, 12 67 RO 78 SO 89 Q 1 13 I 2 14 SI Function Reset Threshold Adjust; if not used to connect to GND.Reset Delay; To Set Time Delay, Connect to GND with a Capacitor Ground Reset Output; This is an Open Collector Output. Collector Output.

Features

5.0 V ± 2.0% Output.
Low 125 mA Quiescent Current.
Active Reset Output Low Down to VQ = 1.0 V.
Adjustable Reset Threshold.
150 mA Output Current Capability.
Fault Protection.
+60 V Peak Transient Voltage.
40 V Reverse Voltage.
Short Circuit.
Thermal Overload.
Early Warning through SI/SO Leads.
Internally Fused Leads in SO.
14 Package.
Very Low Dropout Voltage.
