NCS37014 Self Test Ground Fault-Circuit Interrupter

NCS37014 Description

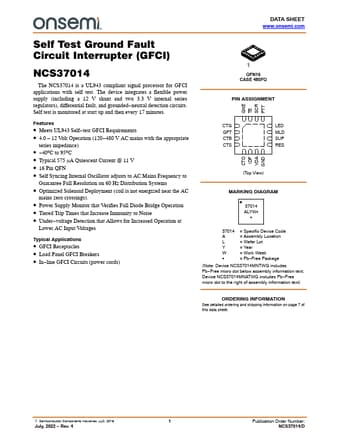

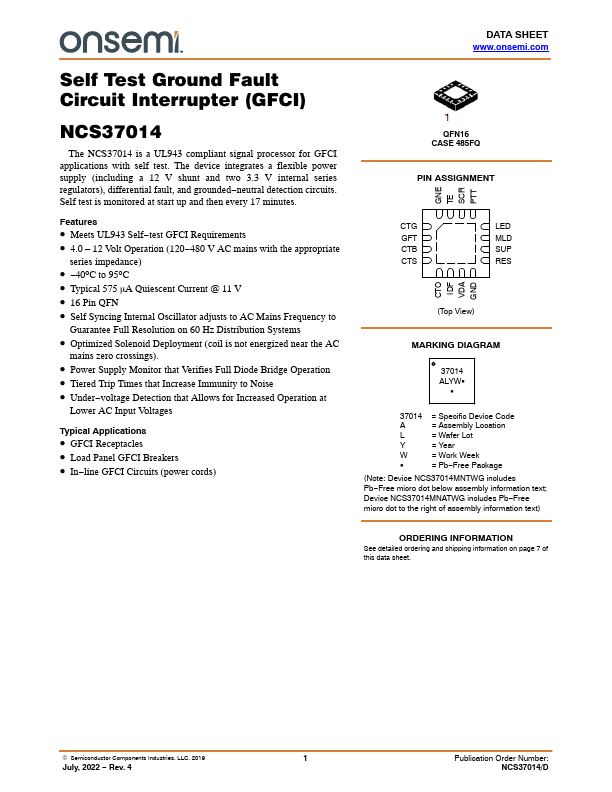

DATA SHEET www.onsemi.com Self Test Ground Fault Circuit Interrupter (GFCI) NCS37014 The NCS37014 is a UL943 compliant signal processor for GFCI appl.
Pin # Name Pad Description 1 CTG Ground Neutral current transformer stimulus 2 GFT Differential self test output signal 3 CTB Differential.

NCS37014 Features

* Meets UL943 Self
* test GFCI Requirements
* 4.0
* 12 Volt Operation (120
* 480 V AC mains with the appropriate series impedance)
* 40oC to 95oC
* Typical 575 mA Quiescent Current @ 11 V
* 16 Pin QFN
* Self Syncing Interna

NCS37014 Applications

* with self test. The device integrates a flexible power supply (including a 12 V shunt and two 3.3 V internal series regulators), differential fault, and grounded
