NCS2325, NCS325 Zero-Drift Operational Amplifier

NCS2325 Description

Operational Amplifier, Precision, Zero-Drift, 50 mV Offset, 0.25 mV/5C, 35 mA NCS325, NCS2325, NCS4325 The NCS325, NCS2325 and NCS4325 are CMOS operat.

NCS2325 Features

* Low Offset Voltage: 14 mV typ, 50 mV max at 25°C for NCS325
* Zero Drift: 0.25 mV/°C max
* Low Noise: 1 mVpp, 0.1 Hz to 10 Hz
* Quiescent Current: 21 mA typ, 35 mA max at 25°C
* Supply Voltage: 1.8 V to 5.5 V
* Rail
* to
* Rail Input and

NCS2325 Applications

* These op amps provide rail
* to
* rail input and output performance and are optimized for low voltage operation as low as 1.8 V and up to 5.5 V. The single channel NCS325 is available in the space
* saving SOT23
* 5 package. The dual channel NCS2325 is available in Micro8 an

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NCS2325, NCS325. Please refer to the document for exact specifications by model.

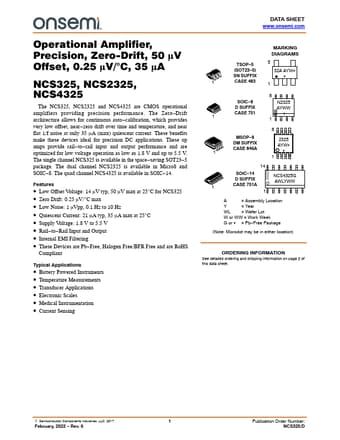

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NCS2325, NCS325
Manufacturer
ON Semiconductor ↗
File Size
1.00 MB
Datasheet
NCS325-ONSemiconductor.pdf
Description
Zero-Drift Operational Amplifier
Note
This datasheet PDF includes multiple part numbers: NCS2325, NCS325.
Please refer to the document for exact specifications by model.
