NCP6132A - Dual Output 3-Phase & 2-Phase Controller

onsemi

General Description

Pin No.

Power for the internal control circuits.

A decoupling capacitor is connected from this pin to ground.

Key Features

Meets Intel’s VR12/IMVP7 Specifications.
Three Phase CPU Voltage Regulator, and Two Phase Auxiliary Voltage Regulator, with Three Internal MOSFET Drivers in Total.
Current Mode Dual Edge Modulation for Fastest Initial Response to 1 1 60 QFN60 CASE 485BB NCP6132x.

📥 Download Datasheet

NCP6132A dual output 3-phase & 2-phase controller by onsemi - Datasheet Preview

Datasheet Details

Part number	NCP6132A
Manufacturer	onsemi
File Size	263.98 KB
Description	Dual Output 3-Phase & 2-Phase Controller
Datasheet	NCP6132A Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
NCP623	Ultra Low Noise 150mA Low Dropout Voltage Regulator	ON
NCP-NFJ	C15 Type Accessories	Hirose Electric
NCP-NFP	C15 Type Accessories	Hirose Electric
NCP03WB473E05RL	Thermistors	Murata
NCP03WB473J05RL	NTC Thermistors	Murata

Other Datasheets by onsemi

Part Number	Description
NCP6132	Dual Output 3 Phase & 2 Phase Controller
NCP6132B	Dual Output 3-Phase & 2-Phase Controller
NCP6133	Dual Output 1/2/3 Phase +1/0 Phase Controller
NCP612	CMOS Low Iq Voltage Regulator
NCP6121	Dual Output 3 Phase +1/0 Phase Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

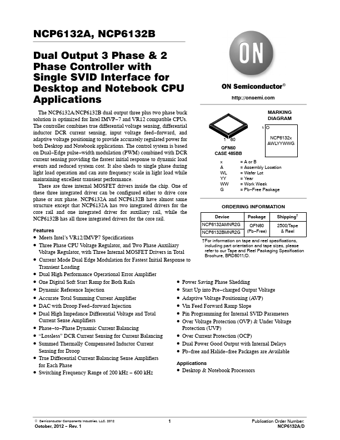

NCP6132A, NCP6132B Dual Output 3 Phase & 2 Phase Controller with Single SVID Interface for Desktop and Notebook CPU Applications http://onsemi.com The NCP6132A/NCP6132B dual output three plus two phase buck solution is optimized for Intel IMVP−7 and VR12 compatible CPUs. MARKING DIAGRAM The controller combines true differential voltage sensing, differential inductor DCR current sensing, input voltage feed−forward, and adaptive voltage positioning to provide accurately regulated power for both Desktop and Notebook applications. The control system is based on Dual−Edge pulse−width modulation (PWM) combined with DCR current sensing providing the fastest initial response to dynamic load events and reduced system cost.
