NCP3335A - Low Dropout Regulator

ON Semiconductor

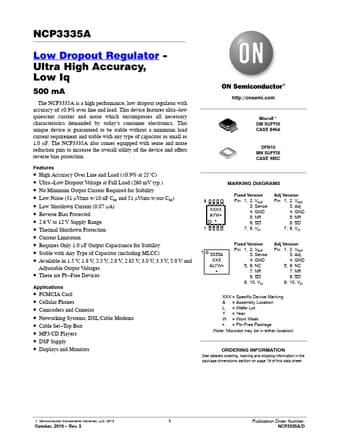

NCP3335A Datasheet Preview — Preview of NCP3335A PDF

Datasheet Details

Part number	NCP3335A
Manufacturer	ON Semiconductor ↗
File Size	362.25 KB
Description	Low Dropout Regulator
Datasheet	NCP3335A_ONSemiconductor.pdf

NCP3335A Product details

Description

Fixed Version Micro8 Pin No.DFN10 Pin No.Pin Name 1, 2 1, 2 Vout 3 3 SENSE 4 4 GND 57 NR 68 SD 7, 8 9, 10 5, 6 Vin NC EPAD EPAD Description Regulated output voltage.Bypass to ground with Cout w 1.0 mF.For output voltage sensing, connect to Pins 1 and 2. Power Supply Ground Noise Reduction Pin.This is an optional pin used to further reduce noise.Shutdown pin.When not in use, this pin should be connected to the input pin.Power Supply Input Voltage Not C

Features

ultra.
low quiescent current and noise which encompasses all necessary characteristics demanded by today’s consumer electronics. This unique device is guaranteed to be stable without a minimum load current requirement and stable with any type of capacitor as small as 1.0 mF. The NCP3335A also comes equipped with sense and noise reduction pins to increase the overall utility of the device and offers reverse bias protection. Features.
High Accuracy Over Line and Load (±0.9% at 25°C.
