NCP308 - Supervisory Circuit IC

ON Semiconductor

NCP308 Datasheet Preview — Preview of NCP308 PDF

Datasheet Details

Part number	NCP308
Manufacturer	ON Semiconductor ↗
File Size	330.18 KB
Description	Supervisory Circuit IC
Datasheet	NCP308-ONSemiconductor.pdf

NCP308 Product details

Description

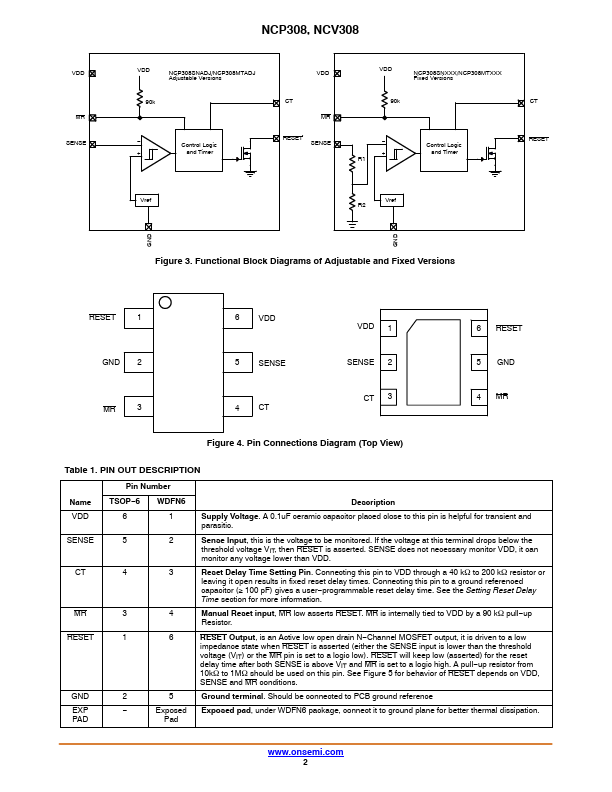

Pin Number Name VDD TSOP 6 6 WDFN6 1 Description Supply Voltage.A 0.1uF ceramic capacitor placed close to this pin is helpful for transient and parasitic.SENSE 5 2 Sense Input, this is the voltage to be monitored.If the voltage at this terminal drops below the threshold voltage VIT, then RESET is asserted.SENSE does not necessary monitor VDD, it can monitor any voltage lower than VDD.CT 4 MR 3 3 Reset Delay Time Setting Pin.Connecting this pin to VDD through a 40 kW

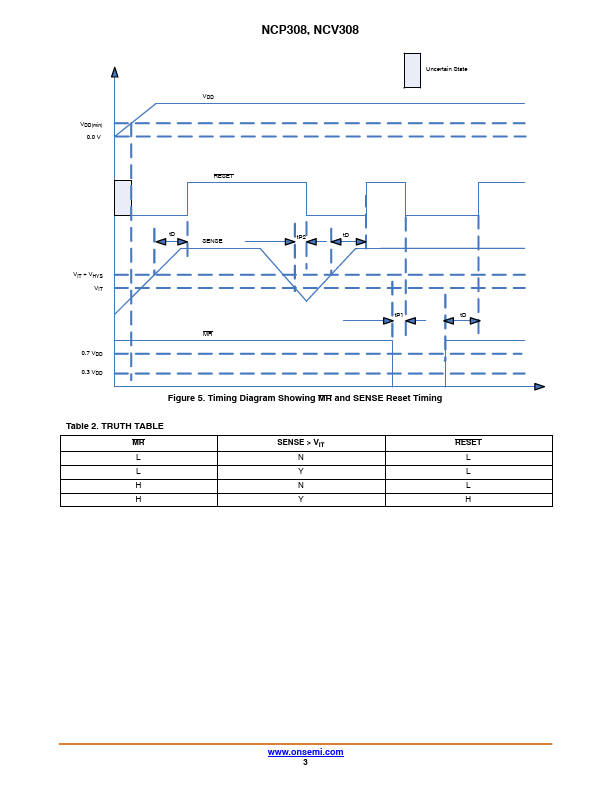

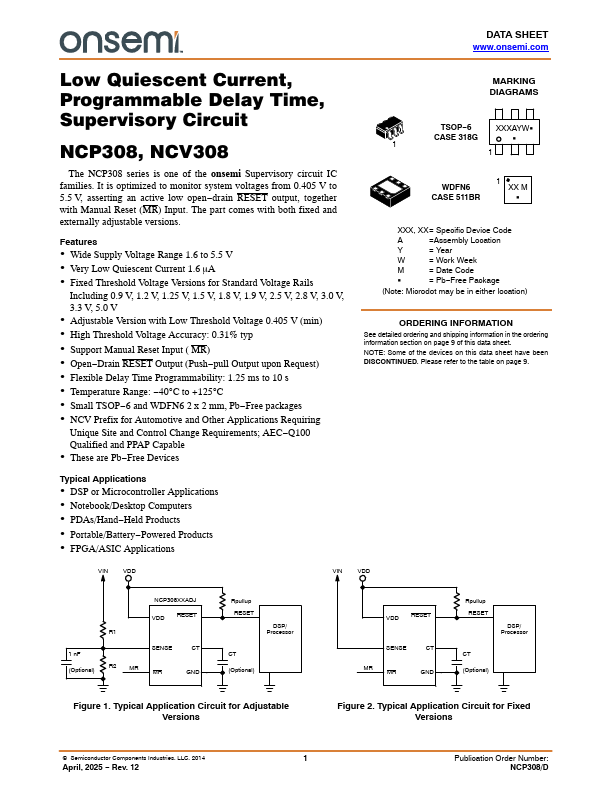

Features

Wide Supply Voltage Range 1.6 to 5.5 V.
Very Low Quiescent Current 1.6 mA.
Fixed Threshold Voltage Versions for Standard Voltage Rails Including 0.9 V, 1.2 V, 1.25 V, 1.5 V, 1.8 V, 1.9 V, 2.5 V, 2.8 V, 3.0 V, 3.3 V, 5.0 V.
Adjustable Version with Low Threshold Voltage 0.405 V (min).
High Threshold Voltage Accuracy: 0.31% typ.
Support Manual Reset Input ( MR).
Open.
Drain RESET Output (Push.
pull Output upon Request).
Flexible Delay Time Prog.
