NB7L111M 6.125Gb/s 1:10 Differential Clock/Data Driver

NB7L111M Description

NB7L111M 2.5V / 3.3V, 6.125Gb/s 1:10 Differential Clock/Data Driver with CML Output .
The NB7L111M is a low skew 1. to. 10 differential clock/data driver, designed with clock/data distribution in mind.

NB7L111M Features

* http://onsemi. com 1 52 QFN
* 52 MN SUFFIX CASE 485M MARKING DIAGRAM
* 52 1 NB7L 111M AWLYYWWG
* Maximum Input Clock Frequency > 5.5 GHz Typical Maximum Inpu

NB7L111M Applications

* The input signals can be either differential or single
* ended (if the external reference voltage is provided). Differential inputs incorporate internal 50 W termination resistors and accept Negative ECL (NECL), Positive ECL (PECL), LVCMOS, LVTTL, CML, or LVDS (using appropriate power supplie

📥 Download Datasheet

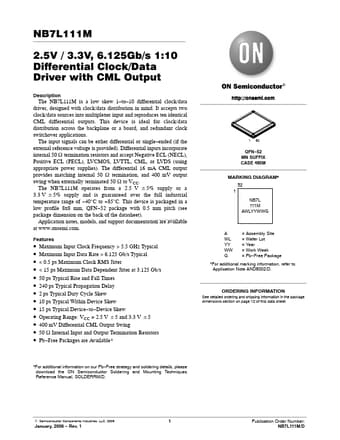

Preview of NB7L111M PDF
