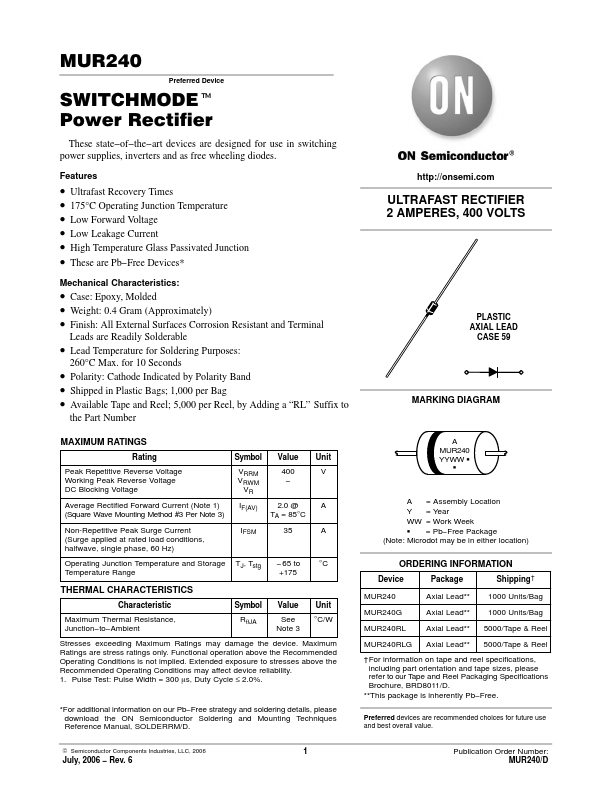

MUR240 - SWITCHMODE Power Rectifier

ON Semiconductor

Datasheet Details

Ultrafast Recovery Times.
175°C Operating Junction Temperature.
Low Forward Voltage.
Low Leakage Current.
High Temperature Glass Passivated Junction.
These are Pb.
Free Devices.
Mechanical Characteristics:.
Case: Epoxy, Molded.
Weight: 0.4 Gram (Approximately).
Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable.
Lead Temperature for Soldering Purposes: 26.
