MUR1540G, MUR1510G - SWITCHMODE Power Rectifiers

ON Semiconductor

📥 Download Datasheet

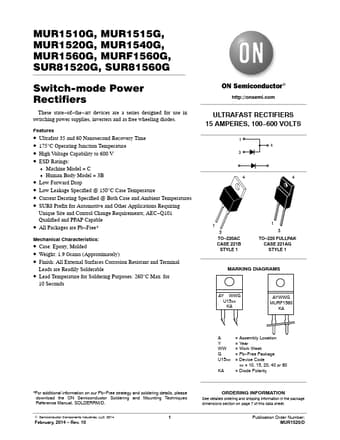

MUR1540G Datasheet Preview — This datasheet PDF includes multiple part numbers: MUR1540G, MUR1510G. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MUR1540G, MUR1510G
Manufacturer	ON Semiconductor
File Size	133.65 KB
Description	SWITCHMODE Power Rectifiers
Datasheet	MUR1510G-ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MUR1540G, MUR1510G. Please refer to the document for exact specifications by model.

MUR1540G Product details

Features

Ultrafast 35 and 60 Nanosecond Recovery Time.
175°C Operating Junction Temperature.
High Voltage Capability to 600 V.
ESD Ratings:.
Machine Model = C.
Human Body Model = 3B.
Low Forward Drop.
Low Leakage Specified @ 150°C Case Temperature.
Current Derating Specified @ Both Case and Ambient Temperatures.
SUR8 Prefix for Automotive and Other.
