MUR1100E - Power Rectifiers

Product Overview

ON Semiconductor

📥 Download Datasheet

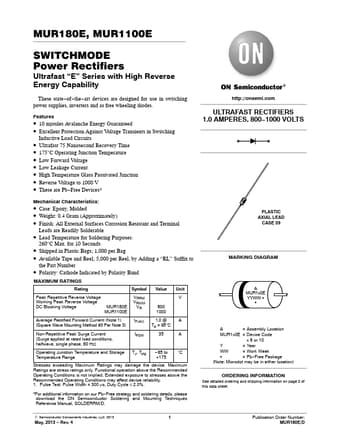

MUR1100E Power Rectifiers by ON Semiconductor - Datasheet Preview — Datasheet preview – MUR1100E

Datasheet Details

Part number	MUR1100E
Manufacturer	ON Semiconductor
File Size	194.84 KB
Description	Power Rectifiers
Datasheet	MUR1100E Datasheet
Note	This datasheet PDF includes multiple part numbers: MUR1100E, MUR180E. Please refer to the document for exact specifications by model.
Additional preview pages of the MUR1100E datasheet.

Product details

Features

10 mjoules Avalanche Energy Guaranteed.
Excellent Protection Against Voltage Transients in Switching Inductive Load Circuits.
Ultrafast 75 Nanosecond Recovery Time.
175°C Operating Junction Temperature.
Low Forward Voltage.
Low Leakage Current.
High Temperature Glass Passivated Junction.
Reverse Voltage to 1000 V.
These are Pb.
Free Devices.
Mechanical Characteristics:.
Case: Epoxy, Molded.
