MT9D115 - 1/5-Inch System-On-A-Chip (SOC) CMOS Digital Image Sensor

ON Semiconductor

The MT9D115 by ON Semiconductor is a 1/5-Inch System-On-A-Chip (SOC) CMOS Digital Image Sensor. Below is the official datasheet preview.

📥 Download Datasheet

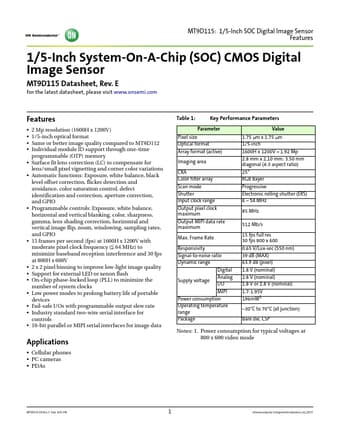

MT9D115 1/5-Inch System-On-A-Chip (SOC) CMOS Digital Image Sensor by ON Semiconductor - Datasheet Preview — Official preview page of the **MT9D115** 1/5-Inch System-On-A-Chip (SOC) CMOS Digital Image Sensor datasheet (ON Semiconductor).

Datasheet Details

Part number	MT9D115
Manufacturer	ON Semiconductor
File Size	0.99 MB
Description	1/5-Inch System-On-A-Chip (SOC) CMOS Digital Image Sensor
Datasheet	MT9D115-ONSemiconductor.pdf
Additional preview pages of the MT9D115 datasheet.

MT9D115 Product details

Description

2 MP 1/5" SOC 2 MP 1/5" CIS SOC 2 MP 1/5" SOC Orderable Product Attribute Description Die Sales, 200m Thickness Chip Tray without Protective Film Wafer Sales, 750m Thickness MT9D115 DS Rev.E Pub.4/15 EN 2 ©Semiconductor Components Industries, LLC,2015. MT9D115: 1/5-Inch SOC Digital Image Sensor Table of Contents Table of Contents

Features

1/5-Inch System-On-A-Chip (SOC) CMOS Digital Image Sensor MT9D115 Datasheet, Rev. E For the latest datasheet, please visit www. onsemi. com Features.
2 Mp resolution (1600H x 1200V).
1/5-inch optical format.
Same or better image quality compared to MT9D112.
Individual module ID support through one-time programmable (OTP) memory.
Surface fit lens correction (LC) to compensate for lens/small pixel vignetting and corner color variations.
Automati.
