MPSA14 - NPN Silicon Transistor

Download the MPSA14 datasheet PDF. This datasheet also covers the MPSA13 variant, as both devices belong to the same npn silicon transistor family and are provided as variant models within a single manufacturer datasheet.

Features

  • Pb.
  • Free Packages are Available.
  • http://onsemi. com.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MPSA13_ONSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MPSA14
Manufacturer onsemi
File Size 98.14 KB
Description NPN Silicon Transistor
Datasheet download datasheet MPSA14 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MPSA14 NPN Darlington transistor Philips
MPSA14 EPITAXIAL PLANAR NPN TRANSISTOR KEC
MPSA14 NPN Silicon Darlington Transistor MCC
MPSA14 Plastic-Encapsulate Transistros NPN Darlington Transistor Weitron Technology
MPSA14 NPN Darlington Transistor Fairchild Semiconductor

Other Datasheets by onsemi

Part Number Description
MPSA12 NPN Transistor
MPSA13 NPN Silicon Transistor
MPSA18 Low Noise Transistor
MPSA05 Amplifier Transistors
MPSA06 Amplifier Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

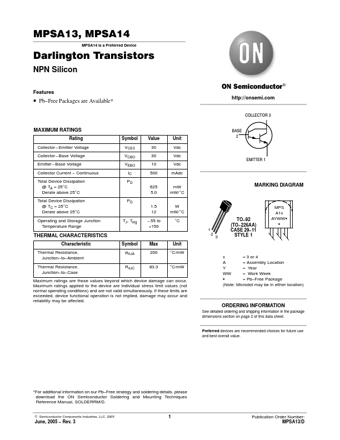

www.DataSheet4U.com MPSA13, MPSA14 MPSA14 is a Preferred Device Darlington Transistors NPN Silicon Features • Pb−Free Packages are Available* http://onsemi.com COLLECTOR 3 MAXIMUM RATINGS Rating Collector −Emitter Voltage Collector −Base Voltage Emitter −Base Voltage Collector Current − Continuous Total Device Dissipation @ TA = 25°C Derate above 25°C Total Device Dissipation @ TC = 25°C Derate above 25°C Operating and Storage Junction Temperature Range Symbol VCES VCBO VEBO IC PD 625 5.0 PD 1.5 12 TJ, Tstg −55 to +150 W mW/°C °C 1 2 Symbol RqJA RqJC Max 200 83.
