MMBT3904LT3G - NPN Transistor

Download the MMBT3904LT3G datasheet PDF. This datasheet also covers the MMBT3904L variant, as both devices belong to the same npn transistor family and are provided as variant models within a single manufacturer datasheet.

Features

  • These Devices are Pb.
  • Free, Halogen Free/BFR Free and are RoHS Compliant.
  • S Prefix for Automotive and Other.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MMBT3904L_ONSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MMBT3904LT1 General Purpose Transistor Motorola
MMBT3904LT1 General Purpose Transistor ON
MMBT3904LT1 NPN Transistor Tuofeng Semiconductor
MMBT3904LT1 NPN Transistor Silicon Standard
MMBT3904L NPN Transistor ON

Other Datasheets by onsemi

Part Number Description
MMBT3904LT1G NPN Transistor
MMBT3904TT1 General Purpose Transistors
MMBT3904TT1G General Purpose Transistors
MMBT3906 PNP General-Purpose Amplifier
MMBT3906L PNP Silicon Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

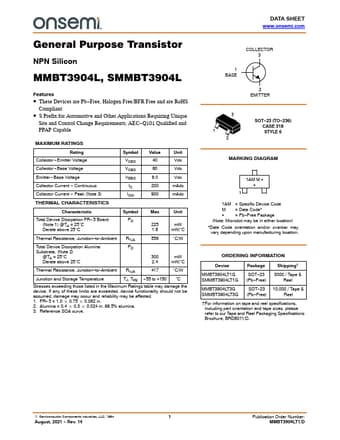

MMBT3904L, SMMBT3904L General Purpose Transistor NPN Silicon Features • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant • S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable MAXIMUM RATINGS Rating Collector −Emitter Voltage Collector −Base Voltage Emitter −Base Voltage Collector Current − Continuous Collector Current − Peak (Note 3) THERMAL CHARACTERISTICS Symbol VCEO VCBO VEBO IC ICM Value 40 60 6.0 200 900 Unit Vdc Vdc Vdc mAdc mAdc Characteristic Total Device Dissipation FR− 5 Board (Note 1) @TA = 25°C Derate above 25°C Symbol PD Max 225 1.
