MM3Z36VST1G - Zener Voltage Regulators

Download the MM3Z36VST1G datasheet PDF. This datasheet also covers the MM3Z2V4ST1G variant, as both devices belong to the same zener voltage regulators family and are provided as variant models within a single manufacturer datasheet.

Features

  • Standard Zener Breakdown Voltage Range.
  • 3.3 V to 36 V.
  • Steady State Power Rating of 500 mW.
  • Small Body Outline Dimensions:.
  • 0.067″ x 0.049″ (1.7 mm x 1.25 mm).
  • Low Body Height: 0.035″ (0.9 mm).
  • Package Weight: 4.507 mg/unit.
  • ESD Rating of Class 3 (> 16 kV) per Human Body Model.
  • Tight Tolerance VZ.
  • SZ Prefix for Automotive and Other.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MM3Z2V4ST1G-ONSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MM3Z36VST1G
Manufacturer onsemi
File Size 190.76 KB
Description Zener Voltage Regulators
Datasheet download datasheet MM3Z36VST1G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MM3Z36V ZENER DIODES AiT Semiconductor
MM3Z36V Surface mount Zener Diodes SeCoS
MM3Z36V ZENER DIODES EIC
MM3Z36V Surface Mount Zener Diodes WEITRON
MM3Z36V ZENER DIODES YENYO

Other Datasheets by onsemi

Part Number Description
MM3Z36VB Zener Diodes
MM3Z36VC Zener Diodes
MM3Z36VT1 Zener Voltage Regulator Diode
MM3Z36VT1G Zener Voltage Regulators
MM3Z30VB Zener Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

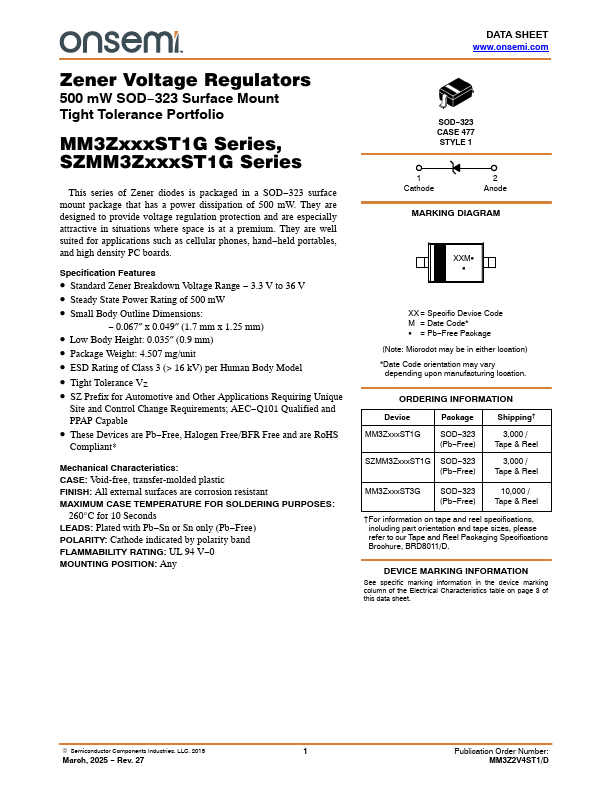

DATA SHEET www.onsemi.com Zener Voltage Regulators 500 mW SOD−323 Surface Mount Tight Tolerance Portfolio MM3ZxxxST1G Series, SZMM3ZxxxST1G Series This series of Zener diodes is packaged in a SOD−323 surface mount package that has a power dissipation of 500 mW. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand−held portables, and high density PC boards. Specification Features • Standard Zener Breakdown Voltage Range − 3.3 V to 36 V • Steady State Power Rating of 500 mW • Small Body Outline Dimensions: − 0.067″ x 0.049″ (1.7 mm x 1.25 mm) • Low Body Height: 0.035″ (0.9 mm) • Package Weight: 4.
