MJE15034G - Complementary Silicon Plastic Power Transistors

Download the MJE15034G datasheet PDF. This datasheet also covers the MJE15034 variant, as both devices belong to the same complementary silicon plastic power transistors family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • High Current Gain.
  • Bandwidth Product.
  • TO.
  • 220 Compact Package.
  • Epoxy meets UL 94 V.
  • 0 @ 0.125 in.
  • These Devices are Pb.
  • Free and are RoHS Compliant.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MJE15034-ONSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MJE15034G
Manufacturer onsemi
File Size 196.75 KB
Description Complementary Silicon Plastic Power Transistors
Datasheet download datasheet MJE15034G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MJE15034 NPN Transistor INCHANGE
MJE15034 Silicon NPN transistor BLUE ROCKET ELECTRONICS
MJE15030 Power Transistors RECTRON
MJE15030 NPN Transistor Central Semiconductor
MJE15030 Silicon NPN transistor BLUE ROCKET ELECTRONICS

Other Datasheets by onsemi

Part Number Description
MJE15034 Complementary Silicon Plastic Power Transistors
MJE15030 Complementary Silicon Plastic Power Transistor
MJE15031 Complementary Silicon Plastic Power Transistor
MJE15032 NPN Power Transistor
MJE15033 PNP Power Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

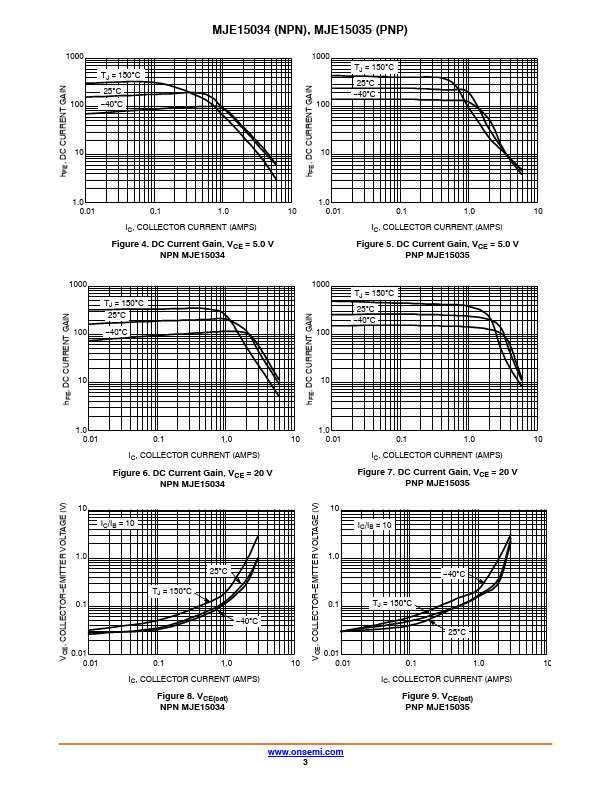

Complementary Silicon Plastic Power Transistors TO−220, NPN & PNP Devices MJE15034 (NPN), MJE15035 (PNP) Complementary silicon plastic power transistors are designed for use as high−frequency drivers in audio amplifiers. Features  High Current Gain − Bandwidth Product  TO−220 Compact Package  Epoxy meets UL 94 V−0 @ 0.125 in  These Devices are Pb−Free and are RoHS Compliant* MAXIMUM RATINGS Rating Collector−Emitter Voltage Collector−Base Voltage Emitter−Base Voltage Collector Current − Continuous Collector Current − Peak Base Current Total Power Dissipation @ TC = 25_C Derate above 25_C Symbol VCEO VCB VEB IC ICM IB PD Value 350 350 5.0 4.0 8.0 1.0 50 0.40 Unit Vdc Vdc Vdc Adc Adc Adc W W/_C Total Power Dissipation @ TA = 25_C Derate above 25_C PD 2.0 W 0.
