MCH6445 - N-Channel Power MOSFET

Name: MCH6445
SKU: MCH6445-948335

ON Semiconductor

The MCH6445 by ON Semiconductor is a N-Channel Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	MCH6445
Manufacturer	ON Semiconductor
File Size	494.79 KB
Description	N-Channel Power MOSFET
Datasheet	MCH6445-ONSemiconductor.pdf

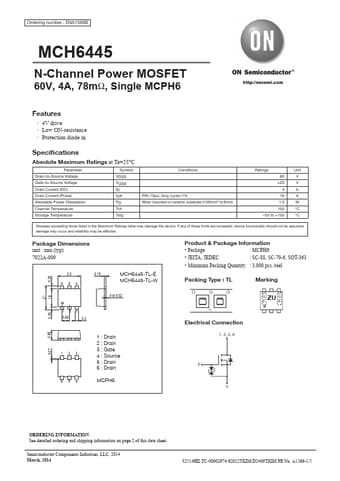

Additional preview pages of the MCH6445 datasheet.

4V drive.
Low ON-resistance.
Protection diode in Specifications Absolute Maximum Ratings at Ta=25°C Parameter Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (Pulse) Allowable Power Dissipation Channel Temperature Storage Temperature Symbol VDSS VGSS ID IDP PD Tch Tstg Conditions PW≤10μs, duty cycle≤1% When mounted on ceramic substrate (1500mm2×0.8mm) Ratings 60 ±20 4 16 1.5 150 --55 to +150 Unit V V A A W °C °C Stresse.
