MC74VHC541 - Octal Bus Buffer

Product Overview

ON Semiconductor

📥 Download Datasheet

MC74VHC541 Octal Bus Buffer by ON Semiconductor - Datasheet Preview — Datasheet preview – MC74VHC541

Datasheet Details

Part number	MC74VHC541
Manufacturer	ON Semiconductor
File Size	81.66 KB
Description	Octal Bus Buffer
Datasheet	MC74VHC541 Datasheet

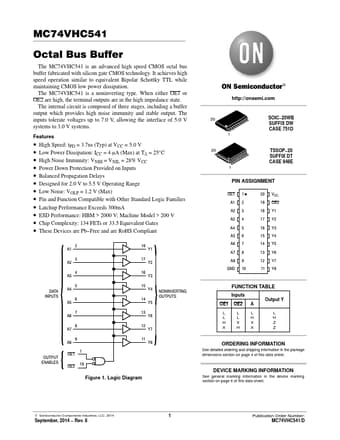

Additional preview pages of the MC74VHC541 datasheet.

Product details

Features

High Speed: tPD = 3.7ns (Typ) at VCC = 5.0 V.
Low Power Dissipation: ICC = 4 mA (Max) at TA = 25°C.
High Noise Immunity: VNIH = VNIL = 28% VCC.
Power Down Protection Provided on Inputs.
Balanced Propagation Delays.
Designed for 2.0 V to 5.5 V Operating Range.
Low Noise: VOLP = 1.2 V (Max).
Pin and Function Compatible with Other Standard Logic Fami.
