MC74VHC244 - Octal Bus Buffer

Product Overview

ON Semiconductor

📥 Download Datasheet

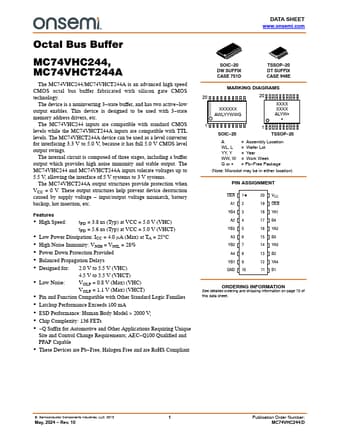

MC74VHC244 Octal Bus Buffer by ON Semiconductor - Datasheet Preview — Datasheet preview – MC74VHC244

Datasheet Details

Part number	MC74VHC244
Manufacturer	ON Semiconductor
File Size	288.19 KB
Description	Octal Bus Buffer
Datasheet	MC74VHC244 Datasheet
Additional preview pages of the MC74VHC244 datasheet.

Product details

Features

High Speed: tPD = 3.8 ns (Typ) at VCC = 5.0 V (VHC) tPD = 5.6 ns (Typ) at VCC = 5.0 V (VHCT).
Low Power Dissipation: ICC = 4.0 mA (Max) at TA = 25C.
High Noise Immunity: VNIH = VNIL = 28%.
Power Down Protection Provided.
Balanced Propagation Delays.
Designed for: 2.0 V to 5.5 V (VHC) 4.5 V to 5.5 V (VHCT).
Low Noise: VOLP = 0.8 V (Max) (VHC) VOLP = 1.1 V (Max) (VHCT).
Pin and Function Compatible with Other Standard Logic Families.
Latchup Perf.
