MC74VHC14 - Hex Schmitt Inverter

ON Semiconductor

The MC74VHC14 by ON Semiconductor is a Hex Schmitt Inverter. Below is the official datasheet preview.

📥 Download Datasheet

MC74VHC14 Hex Schmitt Inverter by ON Semiconductor - Datasheet Preview — Official preview page of the MC74VHC14 Hex Schmitt Inverter datasheet (ON Semiconductor).

Datasheet Details

Part number	MC74VHC14
Manufacturer	ON Semiconductor
File Size	264.40 KB
Description	Hex Schmitt Inverter
Datasheet	MC74VHC14_ONSemiconductor.pdf

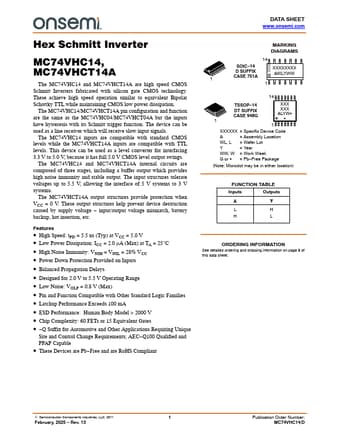

Additional preview pages of the MC74VHC14 datasheet.

MC74VHC14 Product details

Features

High Speed: tPD = 5.5 ns (Typ) at VCC = 5.0 V.
Low Power Dissipation: ICC = 2.0 mA (Max) at TA = 25°C.
High Noise Immunity: VNIH = VNIL = 28% VCC.
Power Down Protection Provided on Inputs.
Balanced Propagation Delays.
Designed for 2.0 V to 5.5 V Operating Range.
Low Noise: VOLP = 0.8 V (Max).
Pin and Function Compatible with Other Standard Logic Families.
Latchup Performance Exceeds 100 mA.
ESD Performance.
