MC74LVXT8051 - Analog Multiplexer/Demultiplexer

Product Overview

ON Semiconductor

📥 Download Datasheet

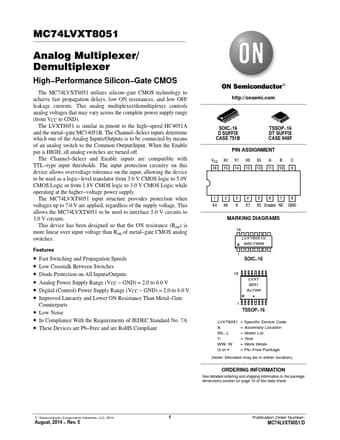

MC74LVXT8051 Analog Multiplexer/Demultiplexer by ON Semiconductor - Datasheet Preview — Datasheet preview – MC74LVXT8051

Datasheet Details

Part number	MC74LVXT8051
Manufacturer	ON Semiconductor
File Size	271.48 KB
Description	Analog Multiplexer/Demultiplexer
Datasheet	MC74LVXT8051 Datasheet
Additional preview pages of the MC74LVXT8051 datasheet.

Product details

Features

Fast Switching and Propagation Speeds.
Low Crosstalk Between Switches.
Diode Protection on All Inputs/Outputs.
Analog Power Supply Range (VCC.
GND) = 2.0 to 6.0 V.
Digital (Control) Power Supply Range (VCC.
GND) = 2.0 to 6.0 V.
Improved Linearity and Lower ON Resistance Than Metal.
Gate Counterparts.
Low Noise.
In Compliance With the Requirements of JEDEC Standard No. 7A.
These Devices are.
