MC74LVX139 - Dual 2-to-4 Decoder/Demultiplexer

ON Semiconductor

The MC74LVX139 by ON Semiconductor is a Dual 2-to-4 Decoder/Demultiplexer. Below is the official datasheet preview.

📥 Download Datasheet

MC74LVX139 Dual 2-to-4 Decoder/Demultiplexer by ON Semiconductor - Datasheet Preview — Official preview page of the MC74LVX139 Dual 2-to-4 Decoder/Demultiplexer datasheet (ON Semiconductor).

Datasheet Details

Part number	MC74LVX139
Manufacturer	ON Semiconductor
File Size	115.31 KB
Description	Dual 2-to-4 Decoder/Demultiplexer
Datasheet	MC74LVX139_ONSemiconductor.pdf

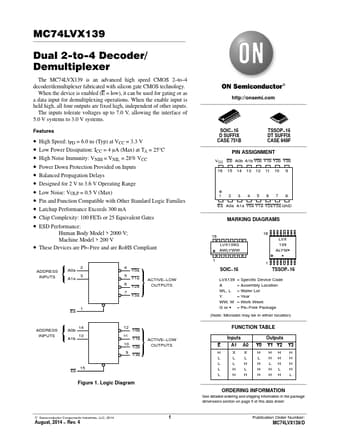

Additional preview pages of the MC74LVX139 datasheet.

MC74LVX139 Product details

Features

High Speed: tPD = 6.0 ns (Typ) at VCC = 3.3 V.
Low Power Dissipation: ICC = 4 mΑ (Max) at TA = 25°C.
High Noise Immunity: VNIH = VNIL = 28% VCC.
Power Down Protection Provided on Inputs.
Balanced Propagation Delays.
Designed for 2 V to 3.6 V Operating Range.
Low Noise: VOLP = 0.5 V (Max).
Pin and Function Compatible with Other Standard Logic Families.
Latchup Performance Exceeds 300 mA.
Chip Complexity: 10.
