MC74ACT573 - Octal Buffer/Line Driver

Product Overview

ON Semiconductor

📥 Download Datasheet

MC74ACT573 Octal Buffer/Line Driver by ON Semiconductor - Datasheet Preview — Datasheet preview – MC74ACT573

Datasheet Details

Part number	MC74ACT573
Manufacturer	ON Semiconductor
File Size	97.97 KB
Description	Octal Buffer/Line Driver
Datasheet	MC74ACT573 Datasheet
Note	This datasheet PDF includes multiple part numbers: MC74ACT573, MC74AC573. Please refer to the document for exact specifications by model.

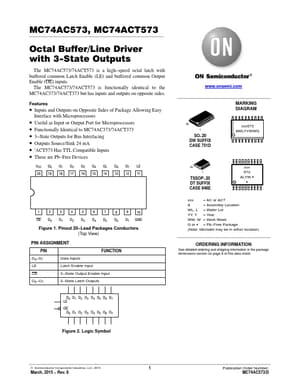

Additional preview pages of the MC74ACT573 datasheet.

Product details

Features

Inputs and Outputs on Opposite Sides of Package Allowing Easy Interface with Microprocessors.
Useful as Input or Output Port for Microprocessors.
Functionally Identical to MC74AC373/74ACT373.
3.
State Outputs for Bus Interfacing.
Outputs Source/Sink 24 mA.
′ACT573 Has TTL Compatible Inputs.
These are Pb.
Free Devices VCC O0 O1 O2 O3 O4 O5 O6 O7 LE 20 19 18 17 16 15 14 13 12 11 1 2 3 4 5 6 7 8 9 10 OE D0 D1 D2 D3 D4 D5.
