MC1496 - BALANCED MODULATORS/DEMODULATORS

Product Overview

ON Semiconductor

Part number	MC1496
Manufacturer	ON Semiconductor
File Size	355.09 KB
Description	BALANCED MODULATORS/DEMODULATORS
Datasheet	MC1496 Datasheet

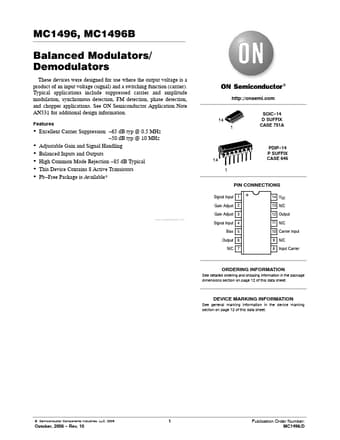

Additional preview pages of the MC1496 datasheet.

14 1 http://onsemi. com SOIC.
14 D SUFFIX CASE 751A.
Excellent Carrier Suppression.
65 dB typ @ 0.5 MHz.
50 dB typ @ 10 MHz Adjustable Gain and Signal Handling Balanced Inputs and Outputs High Common Mode Rejection.
85 dB Typical This Device Contains 8 Active Transistors Pb.
Free Package is Available.
14 1 PDIP.
14 P SUFFIX CASE 646 PIN.
