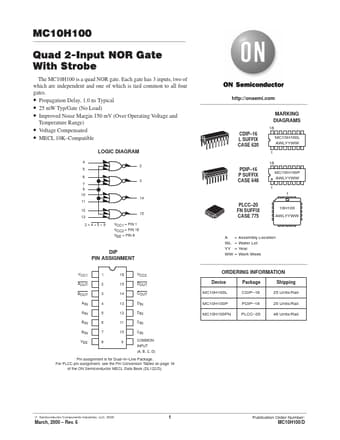

MC10H100 Datasheet (ON Semiconductor) - Quad 2

MC10H100, Quad 2 - input NOR GATE With strobe

MC10H100 Quad 2-Input NOR Gate With Strobe The MC10H100 is a quad NOR gate.

Each gate has 3 inputs, two of which are independent and one of which is tied common to all four gates.

Propagation Delay, 1.0 ns Typical 25 mW Typ/Gate (No Load) Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range) Voltage Compensated MECL 10K Compatible LOGIC DIAGRAM 4 5 6 7 9 10 11 12 13 2=4+5+9 VCC1 = PIN 1 VCC2 = PIN 16 VEE = PIN 8 2 3

MC10H100 Features
