MC100LVEP05 - 2.5V / 3.3V ECL 2-Input Differential AND/NAND

Product Overview

ON Semiconductor

📥 Download Datasheet

MC100LVEP05 2.5V / 3.3V ECL 2-Input Differential AND/NAND by ON Semiconductor - Datasheet Preview — Datasheet preview – MC100LVEP05

Datasheet Details

Part number	MC100LVEP05
Manufacturer	ON Semiconductor
File Size	147.00 KB
Description	2.5V / 3.3V ECL 2-Input Differential AND/NAND
Datasheet	MC100LVEP05 Datasheet

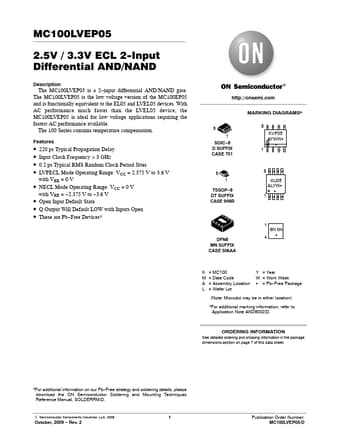

Additional preview pages of the MC100LVEP05 datasheet.

Product details

Description

The MC100LVEP05 is a 2 input differential AND/NAND gate.

Features

220 ps Typical Propagation Delay.
Input Clock Frequency > 3 GHz.
0.2 ps Typical RMS Random Clock Period Jitter.
LVPECL Mode Operating Range: VCC = 2.375 V to 3.6 V with VEE = 0 V.
NECL Mode Operating Range: VCC = 0 V with VEE =.
2.375 V to.
3.6 V.
Open Input Default State.
Q Output Will Default LOW with Inputs Open.
These are Pb.
Free Devices.
http://onsemi. com 8 1 SOIC.
8 D SUFFIX CASE 7.
