MC100E164 - 16:1 MULTIPLEXER

Product Overview

ON Semiconductor

Datasheet Details

Part number	MC100E164
Manufacturer	ON Semiconductor
File Size	140.18 KB
Description	16:1 MULTIPLEXER
Datasheet	MC100E164 Datasheet

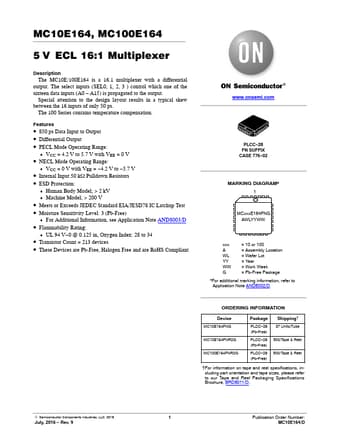

Additional preview pages of the MC100E164 datasheet.

Product details

Description

The MC10E/100E164 is a 16:1 multiplexer with a differential output.The select inputs (SEL0, 1, 2, 3 ) control which one of the sixteen data inputs (A0 A15) is propagated to the output.

Features

850 ps Data Input to Output.
Differential Output.
PECL Mode Operating Range:.
VCC = 4.2 V to 5.7 V with VEE = 0 V.
NECL Mode Operating Range:.
VCC = 0 V with VEE =.
4.2 V to.
5.7 V.
Internal Input 50 kW Pulldown Resistors.
ESD Protection:.
Human Body Model; > 2 kV.
Machine Model; > 200 V.
Meets or Exceeds JEDEC Standard EIA/JESD78 IC Latchup Test.
Moisture Sensitivity Leve.
