MBR140SF - Surface Mount Schottky Power Rectifier

ON Semiconductor

📥 Download Datasheet

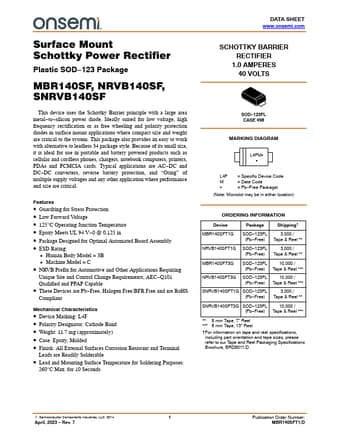

MBR140SF Datasheet Preview — Preview of MBR140SF PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MBR140SF
Manufacturer	ON Semiconductor
File Size	196.35 KB
Description	Surface Mount Schottky Power Rectifier
Datasheet	MBR140SF-ONSemiconductor.pdf

MBR140SF Product details

Features

Guardring for Stress Protection.
Low Forward Voltage.
125°C Operating Junction Temperature.
Epoxy Meets UL 94 V.
0 @ 0.125 in.
Package Designed for Optimal Automated Board Assembly.
ESD Rating:.
Human Body Model = 3B.
Machine Model = C.
NRVB Prefix for Automotive and Other.
