LV8824QA - PWM Driver IC

ON Semiconductor

📥 Download Datasheet

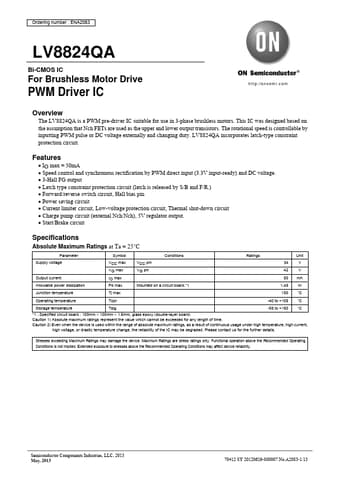

LV8824QA Datasheet Preview — Preview of LV8824QA PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LV8824QA
Manufacturer	ON Semiconductor
File Size	464.03 KB
Description	PWM Driver IC
Datasheet	LV8824QA-ONSemiconductor.pdf

LV8824QA Product details

Features

IO max = 50mA.
Speed control and synchronous rectification by PWM direct input (3.3V input-ready) and DC voltage.
3-Hall FG output.
Latch type constraint protection circuit (latch is released by S/B and F/R. ).
Forward/reverse switch circuit, Hall bias pin.
Power saving circuit.
Current limiter circuit, Low-voltage protection circuit, Thermal shut-down circuit.
Charge pump circuit (external Nch/Nch), 5V regulator output.
