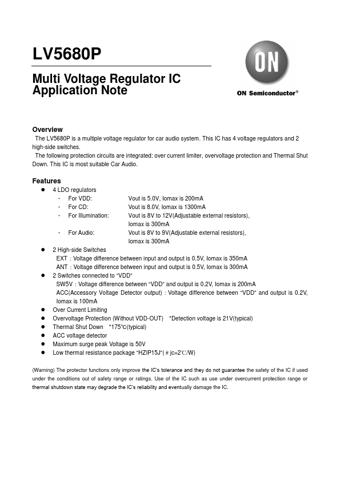

LV5680P - Multi Voltage Regulator

ON Semiconductor

Datasheet Details

4 LDO regulators.
For VDD: For CD: For Illumination: For Audio: Vout is 5.0V, Iomax is 200mA Vout is 8.0V, Iomax is 1300mA Vout is 8V to 12V(Adjustable external resistors), Iomax is 300mA Vout is 8V to 9V(Adjustable external resistors), Iomax is 300mA 2 High-side Switches EXT：Voltage difference between input and output is 0.5V, Iomax is 350mA ANT：Voltage difference between input and output is 0.5V, Iomax is 300mA.
2 Switches connected to “VDD” SW5V：Voltage difference between.
