LM431SB - Programmable Shunt Regulator

Download the LM431SB datasheet PDF. This datasheet also covers the LM431SA variant, as both devices belong to the same programmable shunt regulator family and are provided as variant models within a single manufacturer datasheet.

Description

output adjustable regulators with thermal stability over operating temperature range.

The output voltage can be set any value between VREF (approximately 2.5 V) and 36 V with two external resistors.

Features

  • Programmable Output Voltage to 36 V.
  • Low Dynamic Output Impedance: 0.2 W (Typical).
  • Sink Current Capability: 1.0 to 100 mA.
  • Equivalent Full-Range Temperature Coefficient of 50 ppm/°C (Typical).
  • Temperature Compensated for Operation Over Full Rated Operating Temperature Range.
  • Low Output Noise Voltage.
  • Fast Turn-on Response.
  • These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant 1 SOT-89 CASE 528AH 3 12 SOT.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LM431SA-ONSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LM431SB
Manufacturer onsemi
File Size 401.82 KB
Description Programmable Shunt Regulator
Datasheet download datasheet LM431SB Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LM431SB Programmable Shunt Regulator Fairchild Semiconductor
LM431SA Programmable Shunt Regulator Fairchild Semiconductor
LM431SC Programmable Shunt Regulator Fairchild Semiconductor
LM431 Adjustable Precision Zener Shunt Regulator National Semiconductor
LM431 Programmable Shunt Regulator Fairchild Semiconductor

Other Datasheets by onsemi

Part Number Description
LM431SA Programmable Shunt Regulator
LM431SC Programmable Shunt Regulator
LM431A Programmable Shunt Regulator
LM431B Programmable Shunt Regulator
LM431C Programmable Shunt Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

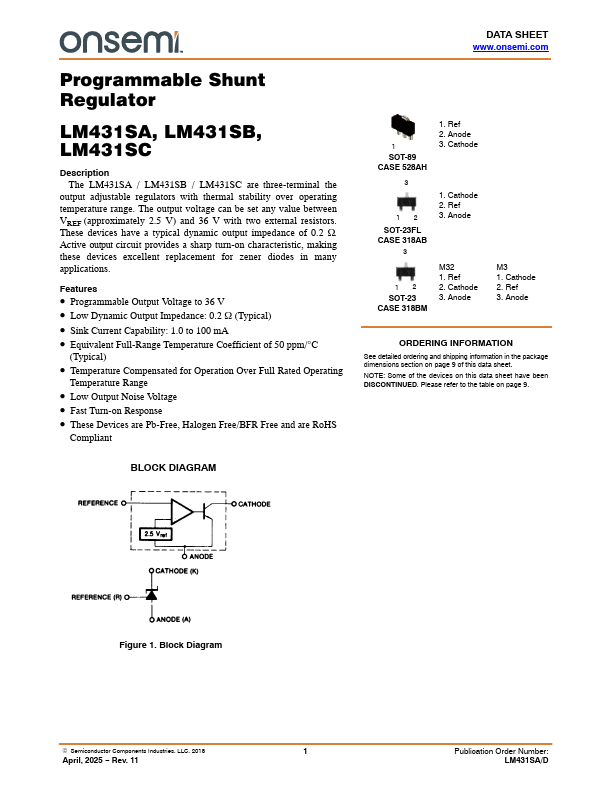

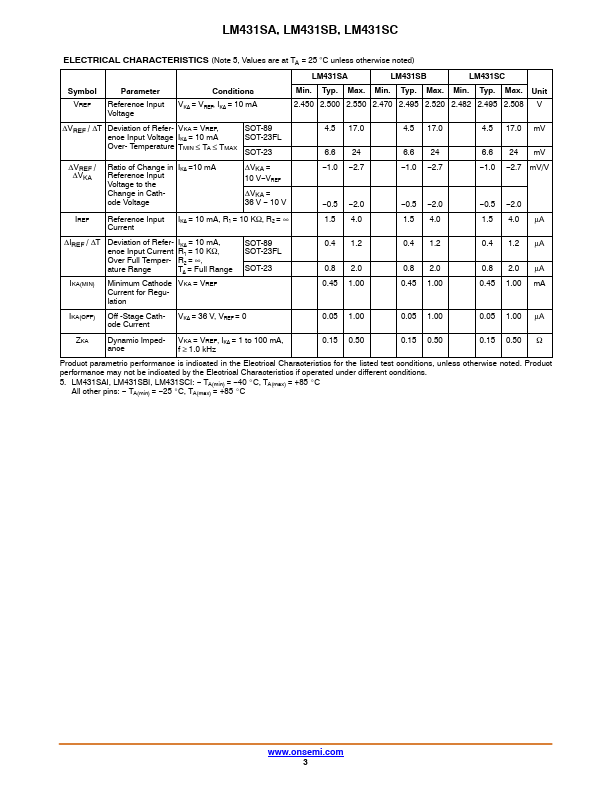

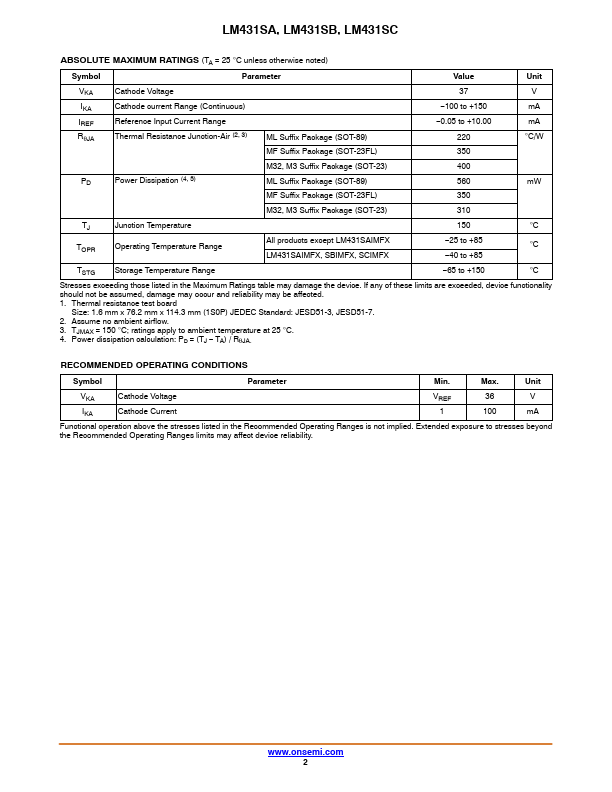

DATA SHEET www.onsemi.com Programmable Shunt Regulator LM431SA, LM431SB, LM431SC Description The LM431SA / LM431SB / LM431SC are three-terminal the output adjustable regulators with thermal stability over operating temperature range. The output voltage can be set any value between VREF (approximately 2.5 V) and 36 V with two external resistors. These devices have a typical dynamic output impedance of 0.2 W. Active output circuit provides a sharp turn-on characteristic, making these devices excellent replacement for zener diodes in many applications. Features • Programmable Output Voltage to 36 V • Low Dynamic Output Impedance: 0.2 W (Typical) • Sink Current Capability: 1.
