LM2902VDG, LM224 - Single Supply Quad Operational Amplifiers

ON Semiconductor

Datasheet Details

Part number	LM2902VDG, LM224
Manufacturer	ON Semiconductor
File Size	345.69 KB
Description	Single Supply Quad Operational Amplifiers

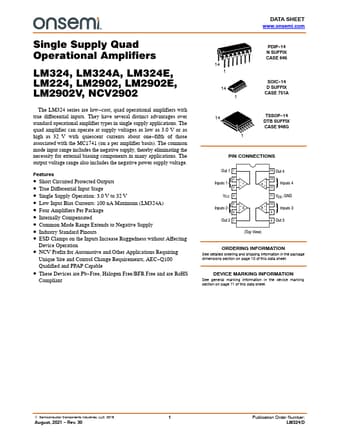

Datasheet	LM224_ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: LM2902VDG, LM224. Please refer to the document for exact specifications by model.

Short Circuited Protected Outputs.
True Differential Input Stage.
Single Supply Operation: 3.0 V to 32 V.
Low Input Bias Currents: 100 nA Maximum (LM324A).
Four Amplifiers Per Package.
Internally Compensated.
Common Mode Range Extends to Negative Supply.
Industry Standard Pinouts.
ESD Clamps on the Inputs Increase Ruggedness without Affecting Device Operation.
NCV Prefix for Automotive and Other Applicatio.
