LC78211 - Analog Function Switch

ON Semiconductor

📥 Download Datasheet

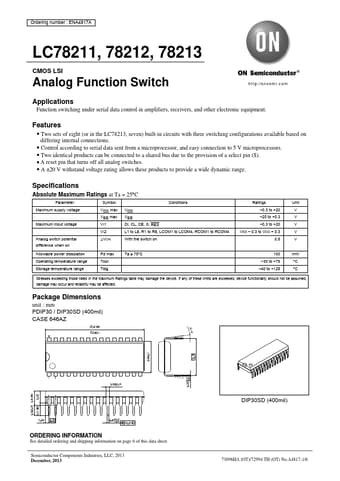

LC78211 Datasheet Preview — Preview of LC78211 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LC78211
Manufacturer	ON Semiconductor
File Size	230.96 KB
Description	Analog Function Switch
Datasheet	LC78211-ONSemiconductor.pdf

LC78211 Product details

Features

Two sets of eight (or in the LC78213, seven) built-in circuits with three switching configurations available based on differing internal connections.
Control according to serial data sent from a microprocessor, and easy connection to 5 V microprocessors.
Two identical products can be connected to a shared bus due to the provision of a select pin (S).
A reset pin that turns off all analog switches.
A ±20 V withstand voltage rating allows these products to provide a w.
