LB11920 Three-Phase Brushless Motor Driver

LB11920 Description

Ordering number : EN7229B LB11920 Monolithic Digital IC For OA Products Three-Phase Brushless Motor Driver http://onsemi.com Overview The LB11920 i.

LB11920 Features

* Three-phase bipolar drive (35V, 3.5V)
* Direct PWM drive
* Built-in high and low side kickback absorbing diodes
* Braking function (short-circuit braking)
* Built-in forward/reverse direction switching circuit
* Full complement of built-in protection

📥 Download Datasheet

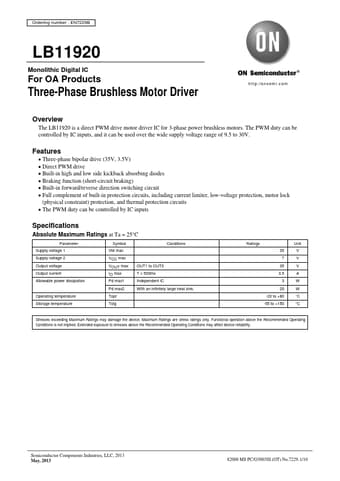

Preview of LB11920 PDF
