LB11660RV Half-pre Motor Driver Single-Phase Full-Wave

LB11660RV Description

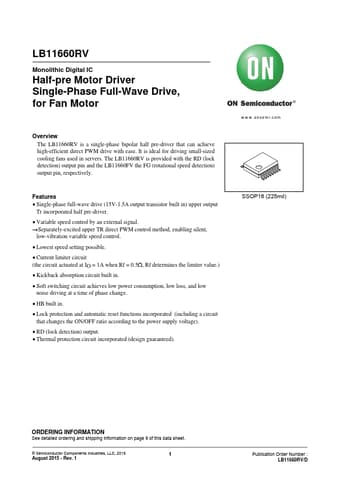

LB11660RV Monolithic Digital IC Half-pre Motor Driver Single-Phase Full-Wave Drive, for Fan Motor Overview The LB11660RV is a single-phase bipolar hal.

LB11660RV Features

* Single-phase full-wave drive (15V-1.5A output transistor built in) upper output Tr incorporated half pre-driver.
* Variable speed control by an external signal. Separately-excited upper TR direct PWM control method, enabling silent, low-vibration variable speed control.
* Lowest speed

LB11660RV Applications

* the 6VREG voltage is usually divided by a resistor, and the voltage thus generated is supplied to the VTH pin. The PWM duty ratio is varied by the changes in the VTH pin voltage which result from changes in temperature.
* 4 < Setting the current limiter > The current limiter is actuated when the
