LA4450 - 2-Channel 26V Power Amplifier

ON Semiconductor

📥 Download Datasheet

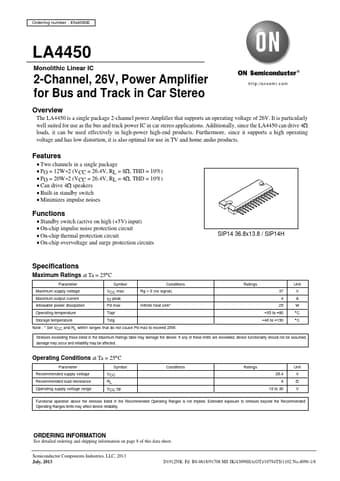

LA4450 Datasheet Preview — Preview of LA4450 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LA4450
Manufacturer	ON Semiconductor
File Size	176.95 KB
Description	2-Channel 26V Power Amplifier
Datasheet	LA4450-ONSemiconductor.pdf

LA4450 Product details

Features

Two channels in a single package.
PO = 12W2 (VCC = 26.4V, RL = 8, THD = 10%).
PO = 20W2 (VCC = 26.4V, RL = 4, THD = 10%).
Can drive 4 speakers.
Built-in standby switch.
Minimizes impulse noises Functions.
Standby switch (active on high (+5V) input).
On-chip impulse noise protection circuit.
On-chip thermal protection circuit.
On-chip overvoltage and surge protection circuits SIP14 36.8x13.8 / SIP14H Specifications Maximum Ratings at Ta =.
