KSP45, KSP44 - NPN Epitaxial Silicon Transistor

ON Semiconductor

📥 Download Datasheet

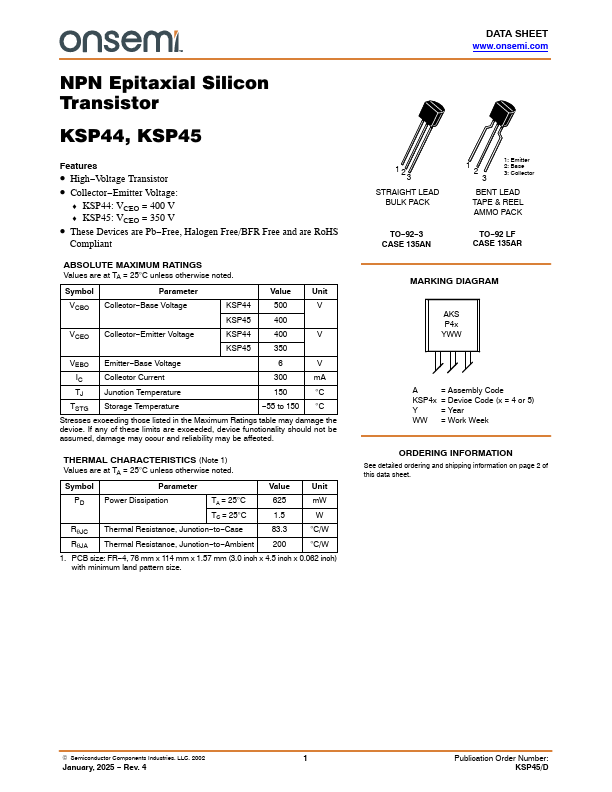

KSP45 Datasheet Preview — This datasheet PDF includes multiple part numbers: KSP45, KSP44. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

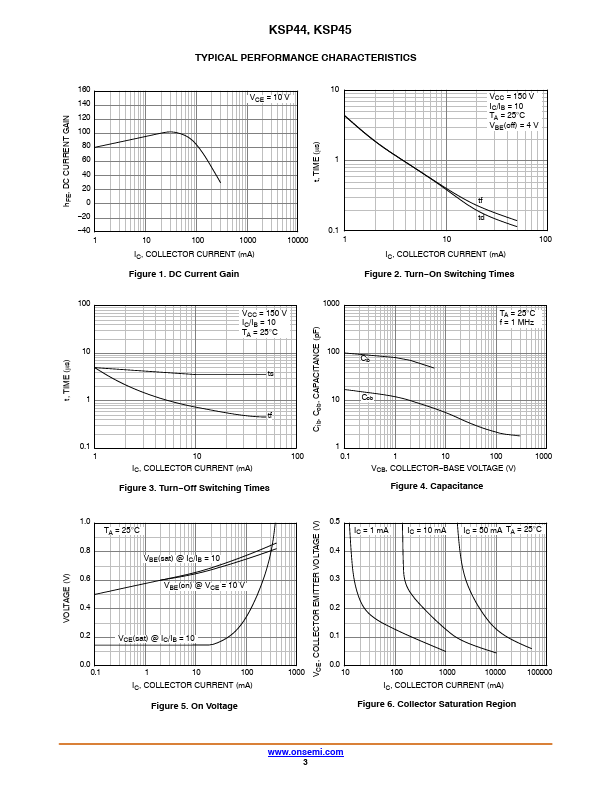

datasheet Preview Page 3

Datasheet Details

Part number	KSP45, KSP44
Manufacturer	ON Semiconductor
File Size	207.87 KB
Description	NPN Epitaxial Silicon Transistor
Datasheet	KSP44-ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: KSP45, KSP44. Please refer to the document for exact specifications by model.

KSP45 Product details

Features

High.
Voltage Transistor.
Collector.
Emitter Voltage:.
KSP44: VCEO = 400 V.
KSP45: VCEO = 350 V.
These Devices are Pb.
Free, Halogen Free/BFR Free and are RoHS Compliant.
