KA2807 - Ground Fault-Circuit Interrupter

ON Semiconductor

The KA2807 by ON Semiconductor is a Ground Fault-Circuit Interrupter. Below is the official datasheet preview.

📥 Download Datasheet

KA2807 Ground Fault-Circuit Interrupter by ON Semiconductor - Datasheet Preview — Official preview page of the **KA2807** Ground Fault-Circuit Interrupter datasheet (ON Semiconductor).

Datasheet Details

Part number	KA2807
Manufacturer	ON Semiconductor
File Size	274.79 KB
Description	Ground Fault-Circuit Interrupter
Datasheet	KA2807-ONSemiconductor.pdf

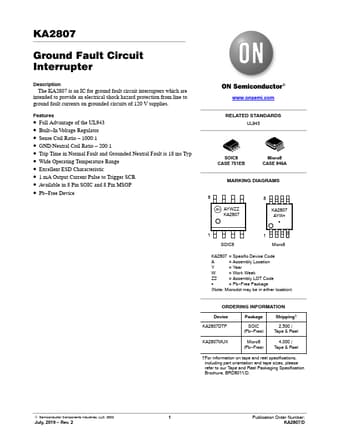

Additional preview pages of the KA2807 datasheet.

KA2807 Product details

Description

The KA2807 is an IC for ground fault circuit interrupters which are intended to provide an electrical shock hazard protection from line to ground fault currents on grounded circuits of 120 V supplies.

Features

Full Advantage of the UL943.
Built.
In Voltage Regulator.
Sense Coil Ratio.
1000:1.
GND/Neutral Coil Ratio.
200:1.
Trip Time in Normal Fault and Grounded Neutral Fault is 18 ms Typ.
Wide Operating Temperature Range.
Excellent ESD Characteristic.
1 mA Output Current Pulse to Trigger SCR.
Available in 8 Pin SOIC and 8 Pin MSOP.
Pb.
Free Device www. onsemi. com.
