FQD1N60C - N-Channel MOSFET

ON Semiconductor

The FQD1N60C by ON Semiconductor is a N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

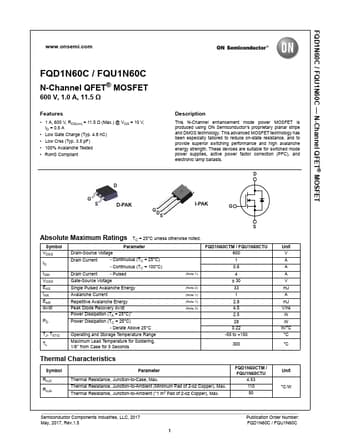

FQD1N60C N-Channel MOSFET by ON Semiconductor - Datasheet Preview — Official preview page of the FQD1N60C N-Channel MOSFET datasheet (ON Semiconductor).

Datasheet Details

Part number	FQD1N60C
Manufacturer	ON Semiconductor
File Size	530.62 KB
Description	N-Channel MOSFET
Datasheet	FQD1N60C-ONSemiconductor.pdf
Additional preview pages of the FQD1N60C datasheet.

FQD1N60C Product details

Description

This N-Channel enhancement mode power MOSFET is produced using ON Semiconductor’s proprietary planar stripe and DMOS technology.

Features

1 A, 600 V, RDS(on) = 11.5 Ω (Max. ) @ VGS = 10 V, ID = 0.5 A.
Low Gate Charge (Typ. 4.8 nC).
Low Crss (Typ. 3.5 pF).
100% Avalanche Tested.
RoHS Compliant.
