FDMA510PZ - P-Channel MOSFET

Description

switching in cellular handset and other ultraportable applications.

Features

  • a MOSFET with low on.
  • state resistance. The MicroFET t 2x2 package offers exceptional thermal performance for its physical size and is well suited to linear mode.

📥 Download Datasheet

Datasheet Details

Part number FDMA510PZ
Manufacturer onsemi
File Size 247.42 KB
Description P-Channel MOSFET
Datasheet download datasheet FDMA510PZ Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FDMA510PZ Single P-Channel MOSFET Fairchild Semiconductor
FDMA507PZ Single P-Channel PowerTrench MOSFET Fairchild Semiconductor
FDMA520PZ Single P-Channel MOSFET Fairchild Semiconductor
FDMA530PZ Single P-Channel PowerTrench MOSFET Fairchild Semiconductor
FDMA0104 N-Channel MOSFET Fairchild Semiconductor

Other Datasheets by onsemi

Part Number Description
FDMA507PZ P-Channel MOSFET
FDMA530PZ P-Channel MOSFET
FDMA037N08LC N-Channel MOSFET
FDMA1023PZ Dual P-Channel MOSFET
FDMA1024NZ Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

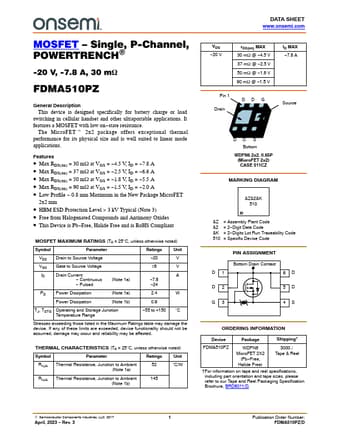

DATA SHEET www.onsemi.com MOSFET – Single, P-Channel, POWERTRENCH) -20 V, -7.8 A, 30 mW FDMA510PZ General Description This device is designed specifically for battery charge or load switching in cellular handset and other ultraportable applications. It features a MOSFET with low on−state resistance. The MicroFET t 2x2 package offers exceptional thermal performance for its physical size and is well suited to linear mode applications. Features • Max RDS(on) = 30 mW at VGS = −4.5 V, ID = −7.8 A • Max RDS(on) = 37 mW at VGS = −2.5 V, ID = −6.6 A • Max RDS(on) = 50 mW at VGS = −1.8 V, ID = −5.5 A • Max RDS(on) = 90 mW at VGS = −1.5 V, ID = −2.0 A • Low Profile − 0.
