FDD9509L-F085 -40V -90A P-Channel MOSFET

FDD9509L-F085 Description

MOSFET * P-Channel POWERTRENCH) -40 V, 7.5 mW, -90 A FDD9509L-F085 .

FDD9509L-F085 Features

* Typ rDS(on) = 6.0 mW at VGS =
* 10 V; ID =
* 70 A
* Typ Qg(tot) = 50 nC at VGS =
* 10 V; ID =
* 70 A
* UIS Capability
* Qualified to AEC Q101
* These Devices are Pb

FDD9509L-F085 Applications

* Automotive Engine Control
* Powertrain Management
* Solenoid and Motor Drivers
* Electrical Power Steering
* Integrated Starter/Alternator
* Distributed Power Architectures and VRM
* Primary Switch for 12 V Systems ABSOLUTE MAXIMUM RATINGS (

📥 Download Datasheet

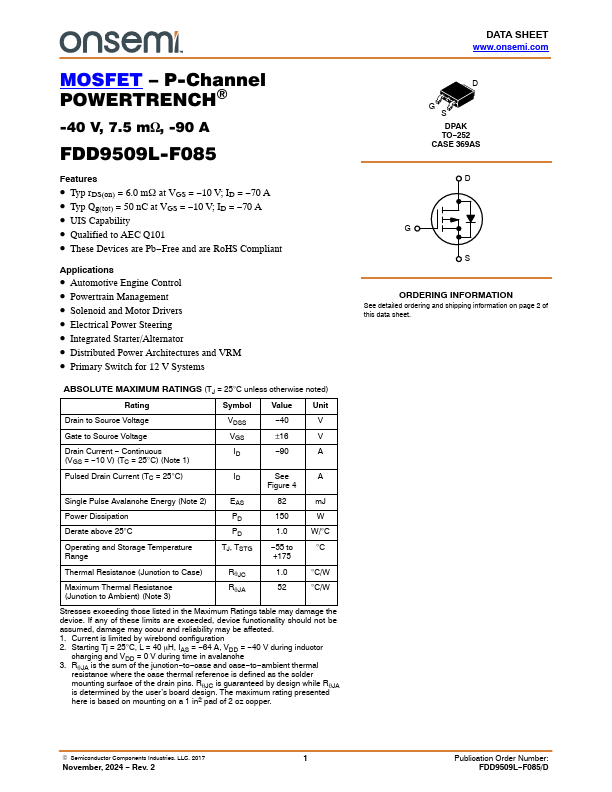

Preview of FDD9509L-F085 PDF

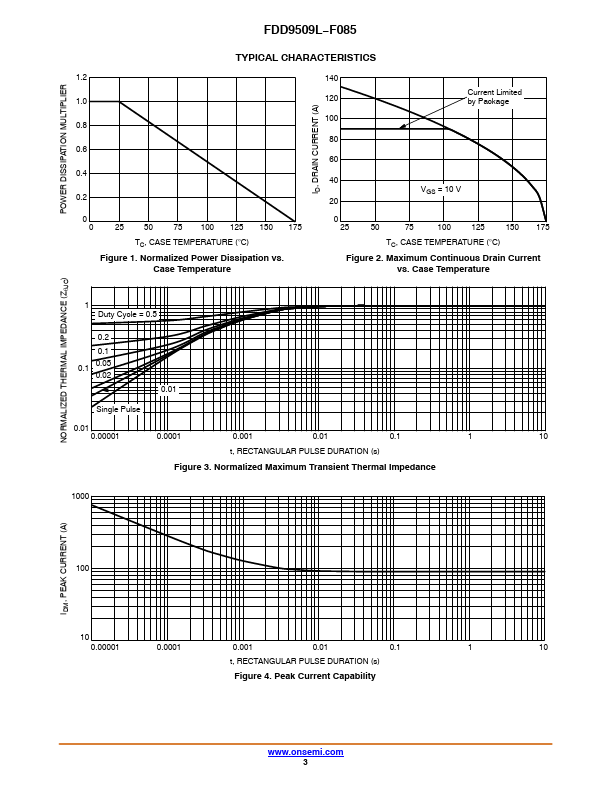

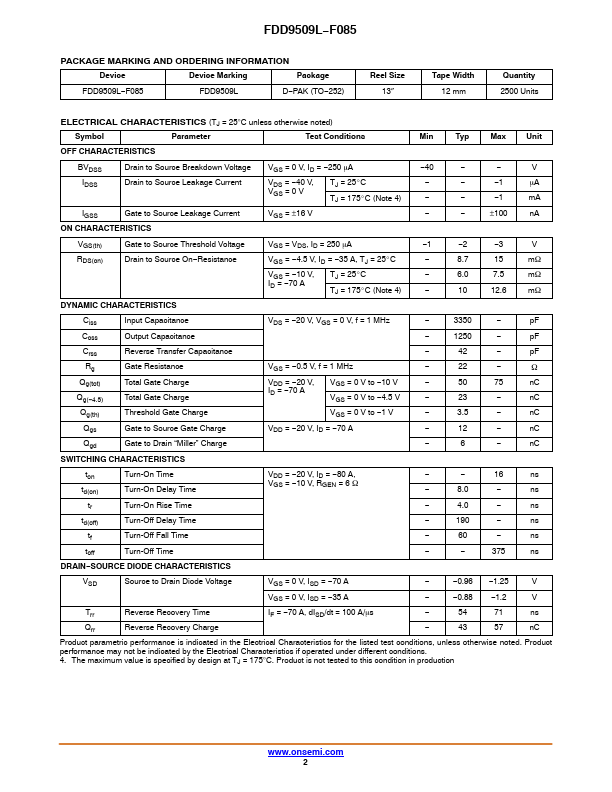

datasheet Preview Page 2 datasheet Preview Page 3
