FDC5612 - N-Channel MOSFET

ON Semiconductor

📥 Download Datasheet

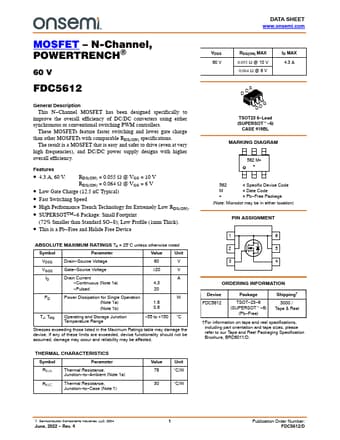

FDC5612 Datasheet Preview — Preview of FDC5612 PDF

Datasheet Details

Part number	FDC5612
Manufacturer	ON Semiconductor
File Size	319.38 KB
Description	N-Channel MOSFET
Datasheet	FDC5612-ONSemiconductor.pdf

FDC5612 Product details

Description

This N Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.These MOSFETs feature faster switching and lower gate charge than other MOSFETs with comparable RDS(ON) specifications.The result is a MOSFET that is easy and safer to drive (even at very high frequencies), and DC/DC power supply designs with higher overall efficiency.

Features

4.3 A, 60 V. RDS(ON) = 0.055 W @ VGS = 10 V RDS(ON) = 0.064 W @ VGS = 6 V.
Low Gate Charge (12.5 nC Typical).
Fast Switching Speed.
High Performance Trench Technology for Extremely Low RDS(ON).
