FDBL86566-F085 - 60V 240A N-Channel MOSFET

ON Semiconductor

📥 Download Datasheet

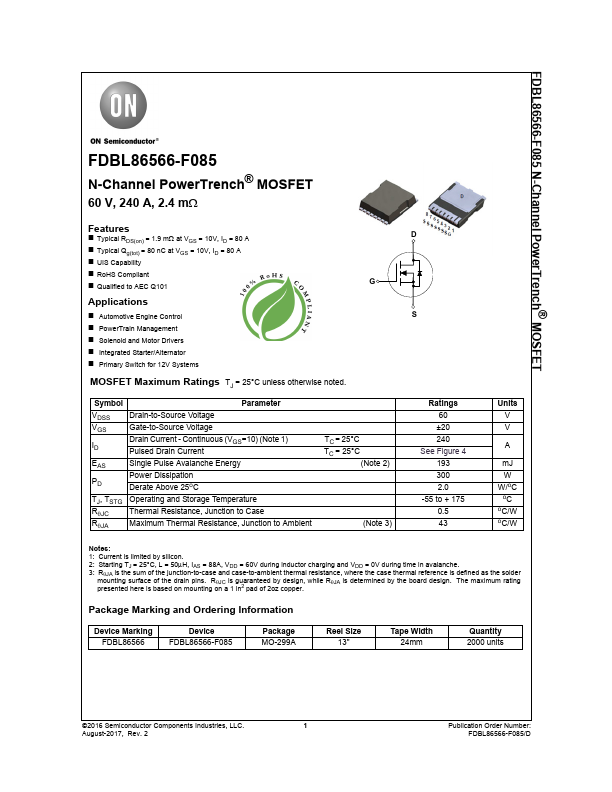

FDBL86566-F085 Datasheet Preview — Preview of FDBL86566-F085 PDF

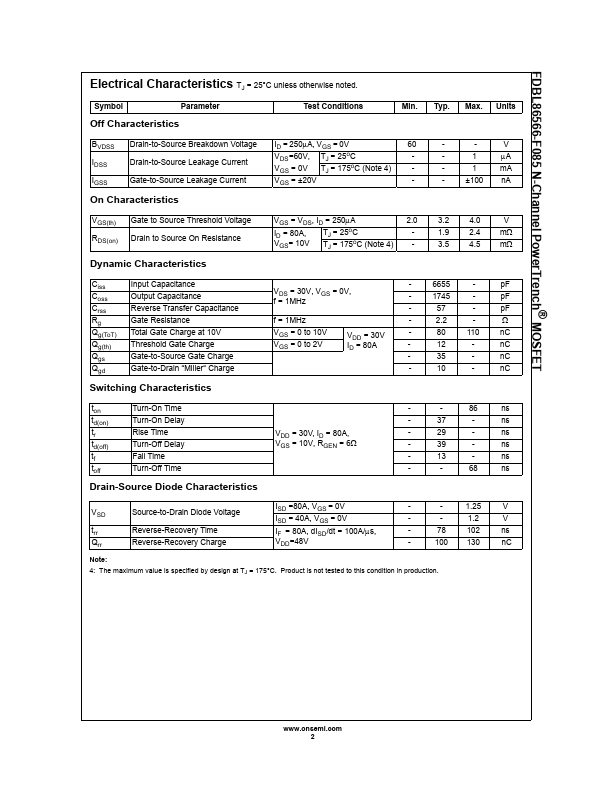

datasheet Preview Page 2

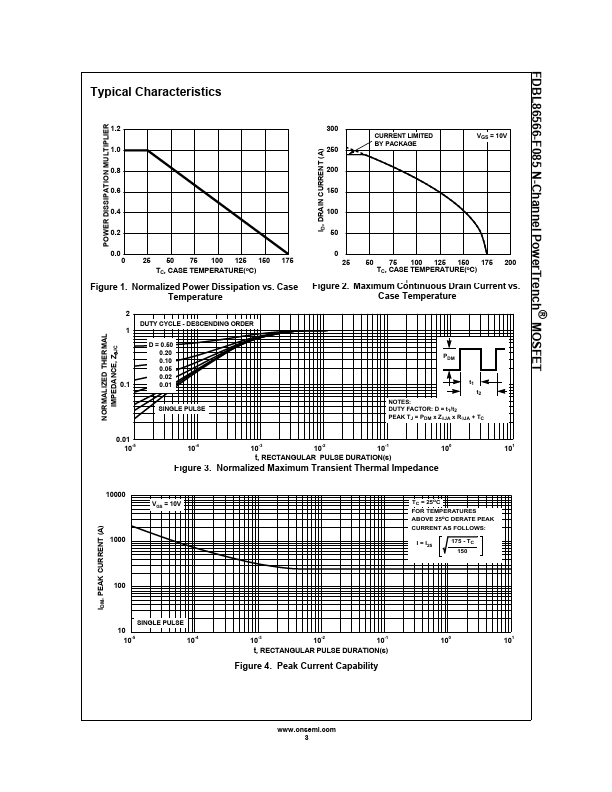

datasheet Preview Page 3

Datasheet Details

Part number	FDBL86566-F085
Manufacturer	ON Semiconductor ↗
File Size	446.13 KB
Description	60V 240A N-Channel MOSFET
Datasheet	FDBL86566-F085-ONSemiconductor.pdf

FDBL86566-F085 Product details

Features

Typical RDS(on) = 1.9 mΩ at VGS = 10V, ID = 80 A.
Typical Qg(tot) = 80 nC at VGS = 10V, ID = 80 A.
UIS Capability.
RoHS Compliant.
Qualified to AEC Q101 G.
