FAN48623 - 2500mA Synchronous TinyBoost Regulator

Description

chemistries that can supply significant energy when the battery voltage is lower than the required voltage for system power ICs.

in power transistors, synchronous rectification, and low supply current, this IC pr

Features

  • Maximum Continuous Load Current: 2500 mA at VIN of 2.5 V Boosting VOUT to 3.3 V.
  • Maximum Pulse Load Current of 3.5 A for GSM PAs (1 Slot) and PMIC Support Simultaneously, VIN = 3.1 V, VOUT = 3.4 V.
  • Up to 97% Efficient.
  • 4 External Components: 2520 case 0.47 mH Inductor and 0603 Case Size Input and Output Capacitors.
  • Input Voltage Range: 2.5 V to 5.5 V.
  • Fixed Output Voltage Options: 3.0 V to 5.0 V.
  • True Bypass Operation when VIN > Tar.

📥 Download Datasheet

Datasheet Details

Part number FAN48623
Manufacturer onsemi
File Size 800.07 KB
Description 2500mA Synchronous TinyBoost Regulator
Datasheet download datasheet FAN48623 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FAN4860 5V Output Synchronous TinyBoost Regulator Fairchild Semiconductor
FAN48610 Fixed-Output Synchronous TinyBoost Regulator Fairchild Semiconductor
FAN48630 Synchronous TinyBoost Regulator Fairchild Semiconductor
FAN48632 2.0A Pulsed-Load Synchronous TinyBoost Regulator Fairchild Semiconductor
FAN4800 Low Start-Up Current PFC/PWM Controller Combos Fairchild Semiconductor

Other Datasheets by onsemi

Part Number Description
FAN4860 Synchronous Regulator
FAN48610 Fixed-Output Synchronous Regulator
FAN48614 Fixed-Output Regulator
FAN48615 Fixed-Output Synchronous TinyBoost Regulator
FAN48618 Synchronous TinyBoost Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

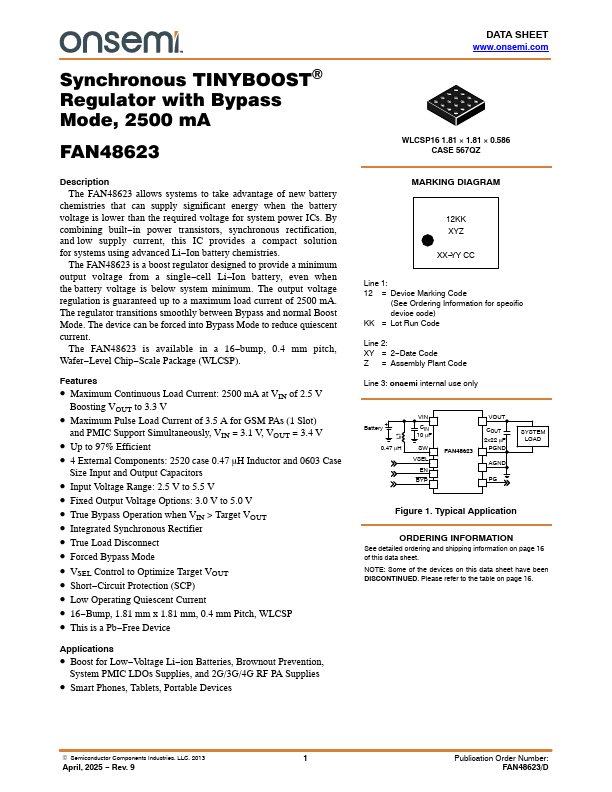

Synchronous TINYBOOST) Regulator with Bypass Mode, 2500 mA FAN48623 DATA SHEET www.onsemi.com WLCSP16 1.81 y 1.81 y 0.586 CASE 567QZ Description The FAN48623 allows systems to take advantage of new battery chemistries that can supply significant energy when the battery voltage is lower than the required voltage for system power ICs. By combining built−in power transistors, synchronous rectification, and low supply current, this IC provides a compact solution for systems using advanced Li−Ion battery chemistries. The FAN48623 is a boost regulator designed to provide a minimum output voltage from a single−cell Li−Ion battery, even when the battery voltage is below system minimum. The output voltage regulation is guaranteed up to a maximum load current of 2500 mA.
