ESD8472, ESD Protection Diode

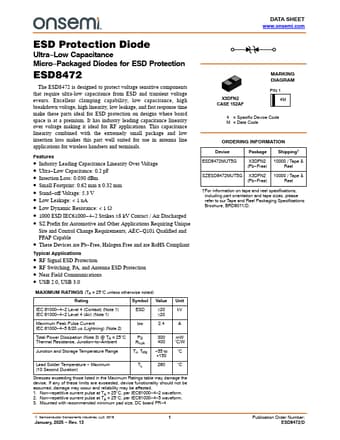

DATA SHEET www.onsemi.com ESD Protection Diode Ultra Low Capacitance Micro Packaged Diodes for ESD Protection ESD8472 The ESD8472 is designed to protect voltage sensitive components that require ultra-low capacitance from ESD and transient voltage events.

Excellent clamping capability, low capacitance, high breakdown voltage, high linearity, low leakage, and fast response time make these parts ideal for ESD protection on designs where board space is at a premium.

It has industr

ESD8472 Features

* Industry Leading Capacitance Linearity Over Voltage

* Ultra

* Low Capacitance: 0.2 pF

* Insertion Loss: 0.030 dBm

* Small Footprint: 0.62 mm x 0.32 mm

* Stand

* off Voltage: 5.3 V

* Low Leakage: < 1 nA

* Low Dynamic Resistance: <
