ECH8690 - Dual Power MOSFET

Product Overview

ON Semiconductor

Datasheet Details

Part number	ECH8690
Manufacturer	ON Semiconductor
File Size	201.70 KB
Description	Dual Power MOSFET
Datasheet	ECH8690 Datasheet

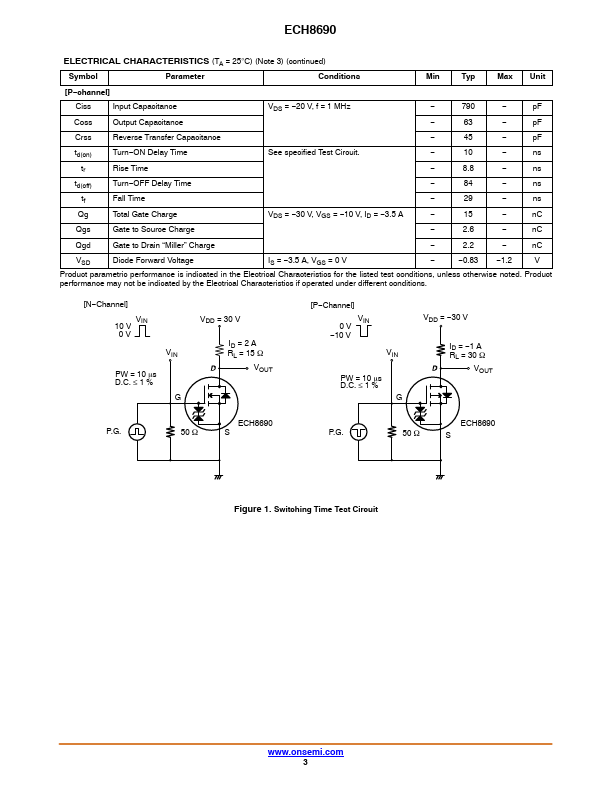

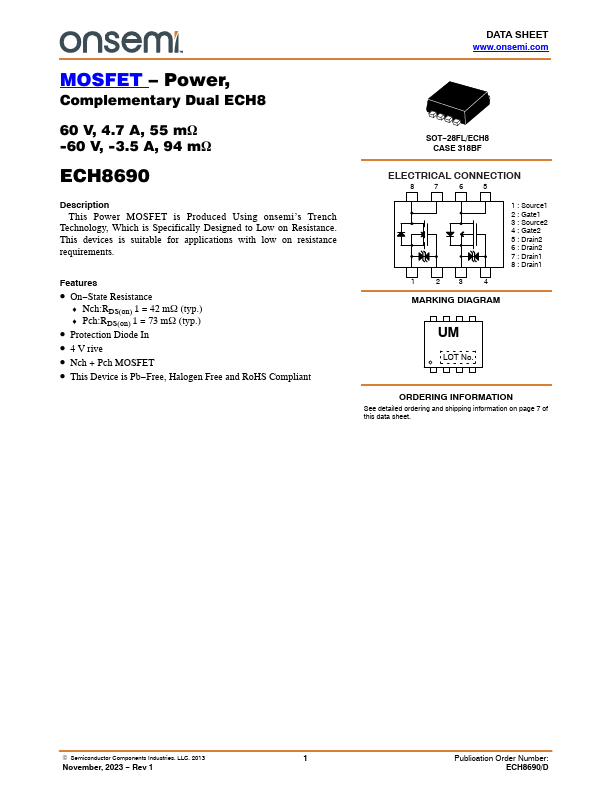

Additional preview pages of the ECH8690 datasheet.

Product details

Description

This Power MOSFET is Produced Using onsemi’s Trench Technology, Which is Specifically Designed to Low on Resistance.This devices is suitable for applications with low on resistance requirements.

Features

On.
State Resistance.
Nch:RDS(on) 1 = 42 mW (typ. ).
Pch:RDS(on) 1 = 73 mW (typ. ).
Protection Diode In.
4 V rive.
Nch + Pch MOSFET.
This Device is Pb.
Free, Halogen Free and RoHS Compliant DATA SHEET www. onsemi. com SOT.
28FL/ECH8 CASE 318BF.
